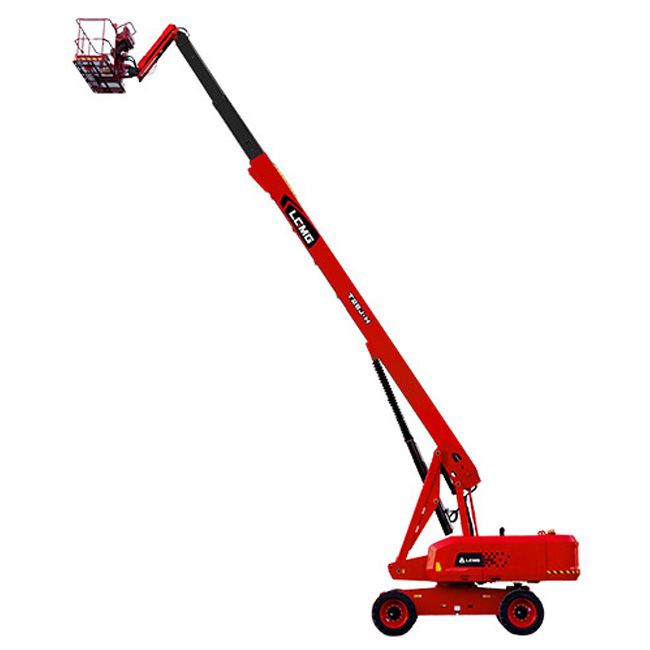

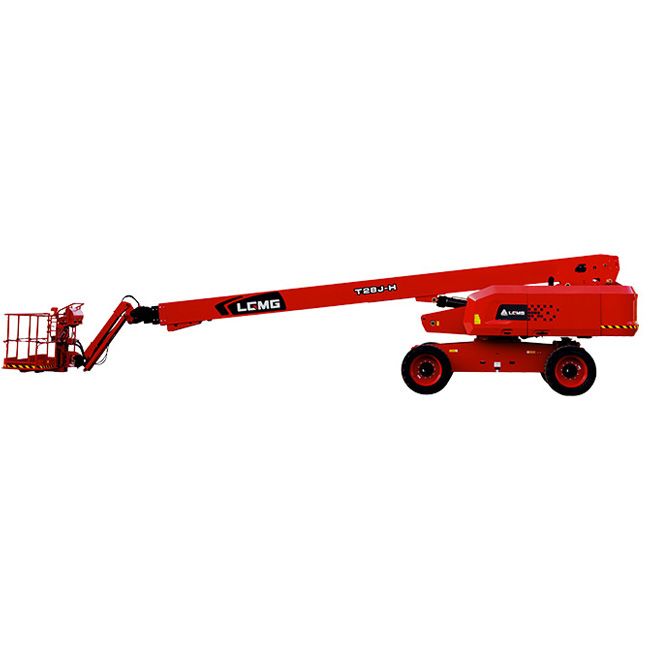

LGMG T28JH Boom Lift

The LGMG T28JH has a automatic engine speed control, boom descends by its own weight

Read More >


  • Max. Working Height Max. Working Height: 29.8m
  • Max. Lifting Height Max. Lifting Height: 7.94m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 22.5m
  • Lift Capacity Lift Capacity: 450kg
  • Weight Weight: 19kg
  • Power Source Power Source: Diesel

NEED SOME HELP?

Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk


The LGMG T28JH boom lift, with working heights of 22 to 30m (71.5/97.8ft) , indoor-outdoor application, a maximum occupancy of three people and a 450/300kg (992/661lbs) dual-capacity design, H-series telescopic boom lifts allow for more material to be loaded at one time, which greatly enhances work efficiency.

 The boom lift also has excellent performance over hard, uneven terrain and has smoother maneuvering, precise positioning and comfortable operation

  • Universal key components
  • Higher maintenance efficiency
  • Automatic engine speed control, boom descends by its own weight
  • Intelligent diagnostic and control system with precise fault analysis

Specifications

More Information
Max. Working Height 29.80m
Max. Lifting Height 7.94m
Max. Horizontal Outreach 22.50m
Lift Capacity 450kg
Power Source Diesel
Weight 18.80kg
Lifting Mechanism Telescopic Boom
Chassis Type Self propelled
