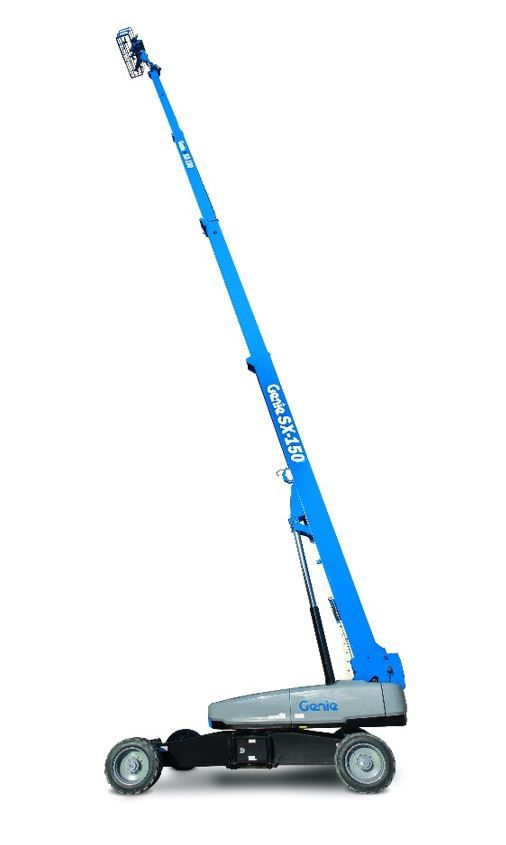

Genie SX-150 4WD

Genie SX-150 4WD Key Facts

  • Max. Working Height Max. Working Height: 48.33m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 24.38m
  • Travel Width Travel Width: 2.49m
  • Lift Capacity Lift Capacity: 340kg
  • Weight Weight: 22,657kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie SX-150 4WD Key Facts

  • Features 360˚continuous turntable rotation & 160° platform rotation
  • Industry leading lift capacity of 340kg
  • Reaches full working height of in less than 3 minutes
  • Highly compact at only 2.49m wide
  • Lift Tool™ Work Tray
  • Stage IIIA and V Engine

With its full working envelope, the SX-150 4WD provides an industry leading lift capacity of 340kg. The boom can reach its full working height of 48m (157ft) in less than three minutes, and has been designed with a focus on productivity. The SX-150 features a 360° continuous turntable rotation, platform rotation of 160°, and a 3.05m (10ft) jib that rotates both horizontally and vertically, for precise positioning.

The SX-150 is ideal for applications at 30m-48m and features patented X-chassis extendable axles for additional stability. It provides maximum horizontal reach of 24.38m (80ft), and also delivers 21.34m (70ft) of outreach at 36.6m (120ft) of platform height. At only 2.49m wide, and with a tail swing of 1.06m, it is a highly compact and efficient machine.


More Information
Max. Working Height 48.33m
Max. Horizontal Outreach 24.38m
Lift Capacity 340kg
Power Source Diesel
Weight 22,657kg
Travel Width 2.49m
Equipment Use Outdoor
Lifting Mechanism Telescopic Boom
Chassis Type RT Diesel Self propelled
