Genie S-80 XC 4WD

Genie S-80 XC 4WD Key Facts

  • Max. Working Height Max. Working Height: 26.38m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 20.83m
  • Travel Width Travel Width: 2.5m
  • Lift Capacity Lift Capacity: 454kg
  • Weight Weight: 16,783kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie S-80 XC 4WD Key Facts

  • Industry-leading lift capacity of 454kg (300kg unrestricted)
  • Patented axle technology for superb rough terrain
  • Fast boom lift speed and 360˚ continuous turntable rotation
  • Good in tight spaces thanks to minimal tail swing design
  • Stage IIIA and V Engine
  • Lift Tool™ Work Tray

The Genie S-80 XC has a maximum working height of 26.38m, and an impressive 20.83m horizontal outreach. It features exclusive virtual pivot boom design, which maintains the weight of the boom over the chassis’ centre of gravity as it elevates. This keeps the overall weight of the machine down by reducing the amount of counterweight required, making it ideal for use on sensitive terrain.

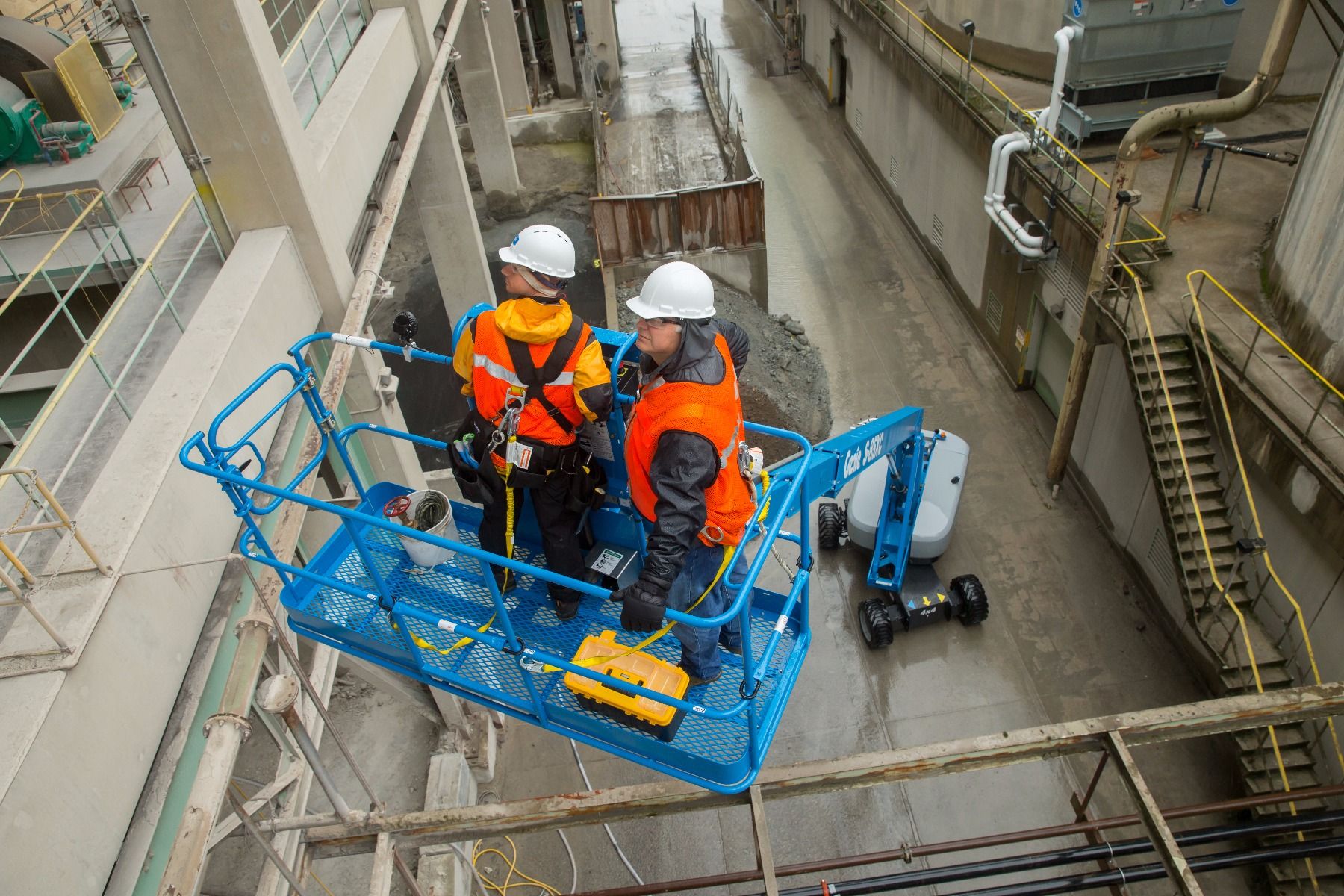

It provides two safe working loads – up to 454kg with a restricted envelope or up to 300kg with unrestricted operation, which allows up to three people with tools to work on the platform.

By reducing the number of hydraulic components and moving parts, Genie’s engineers have made service and maintenance of the boom, even more cost effective. Also available with extra working height as the Genie S-85 XC 4WD.


More Information
Max. Working Height 26.38m
Max. Horizontal Outreach 20.83m
Lift Capacity 454kg
Power Source Diesel
Weight 16,783kg
Travel Width 2.5m
Lifting Mechanism Telescopic Boom
Chassis Type RT Diesel Self propelled
