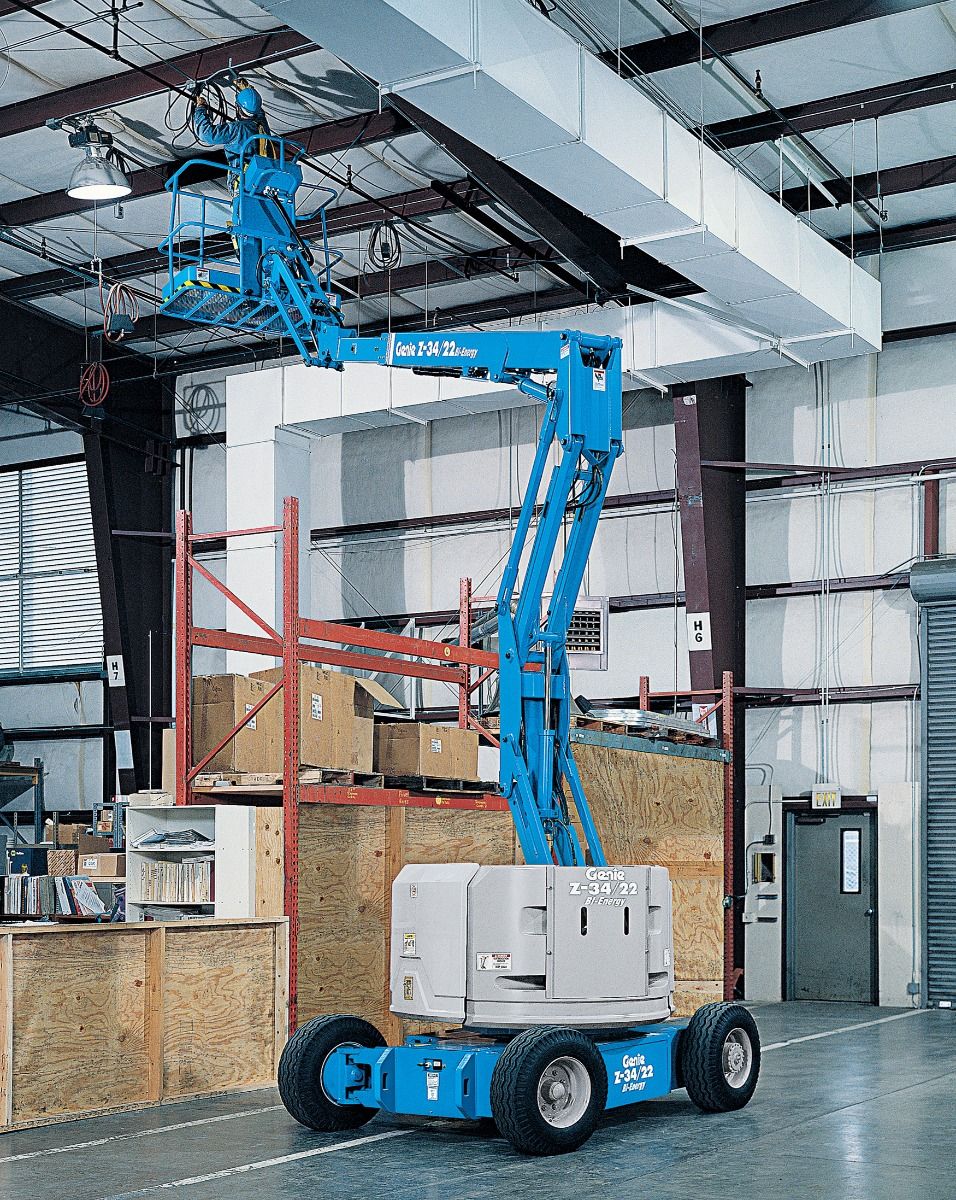

Genie Z-34/22 DC or Bi-Energy

Genie Z-34/22 DC or Bi-Energy Key Facts

  • Max. Working Height Max. Working Height: 12.52m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 6.78m
  • Travel Width Travel Width: 1.73m
  • Lift Capacity Lift Capacity: 227kg
  • Weight Weight: 5,179kg
  • Power Source Power Source: Battery


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie Z-34/22 DC or Bi-Energy Key Facts

  • Choose from 100% DC electric or flexible Bi-Energy
  • Powered by Genie’s Sep-Ex 48V DC drive system
  • 30% gradeability, plus automatic hill and ramp braking
  • 1.2m articulating jib and rotating platform fitted as standard
  • Zero tail swing and great “up and over” capabilities

Delivering efficiency and environmental benefits, the Genie Z-34/22 DC is a 100% battery powered 48V lift providing quiet, emission-free operation. The Bi-Energy version combines these benefits with an on-board diesel generator for increased versatility. Standard features include an articulating jib, soft-riding pneumatic tyres and a rotating platform.


More Information
Max. Working Height 12.52m
Max. Horizontal Outreach 6.78m
Lift Capacity 227kg
Power Source Battery
Weight 5,179kg
Travel Width 1.73m
Lifting Mechanism Articulated Boom
Chassis Type Electric Self propelled
