Genie ZX-135/70 4WD

Genie ZX-135/70 Key Facts

  • Max. Working Height Max. Working Height: 43.15m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 21.26m
  • Travel Width Travel Width: 2.46m
  • Lift Capacity Lift Capacity: 272kg
  • Weight Weight: 21,092kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie ZX-135/70 Key Facts

  • Largest articulating boom in Genie range
  • Easy transport width of 2.46 m (8 ft 2 in).
  • Impressive working height, outreach and “up and over” clearance
  • X-Chassis axle extends for operation, retracts for transport
  • Front wheel, rear wheel & crab steer for increased manoeuvrability
  • Genie Jib-Extend telescopic jib provides extra reach
  • Lift Tool™ Work Tray
  • Stage IIIA and V Engine

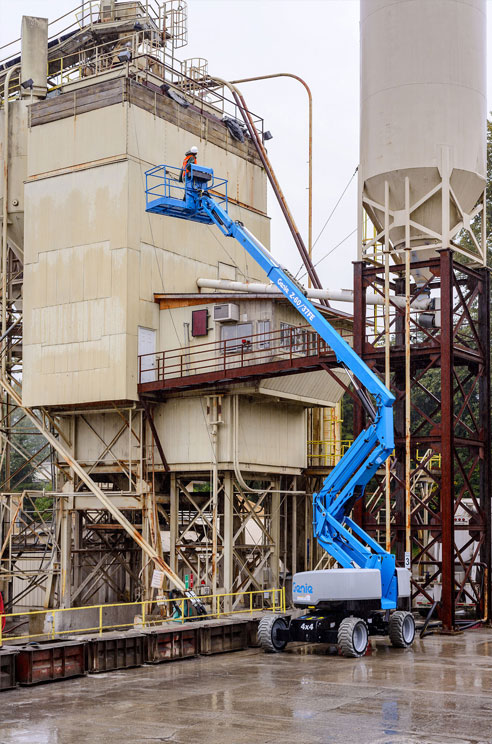

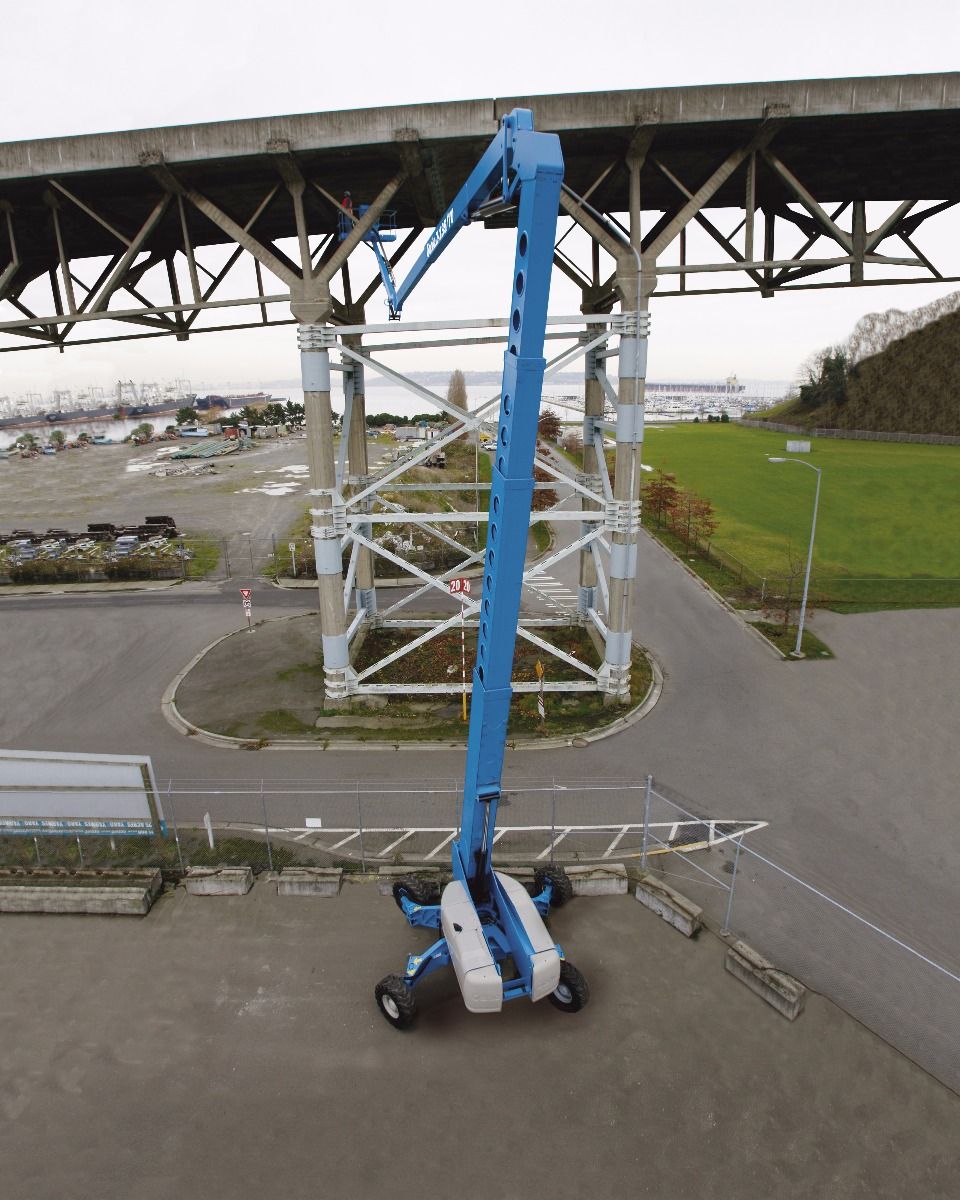

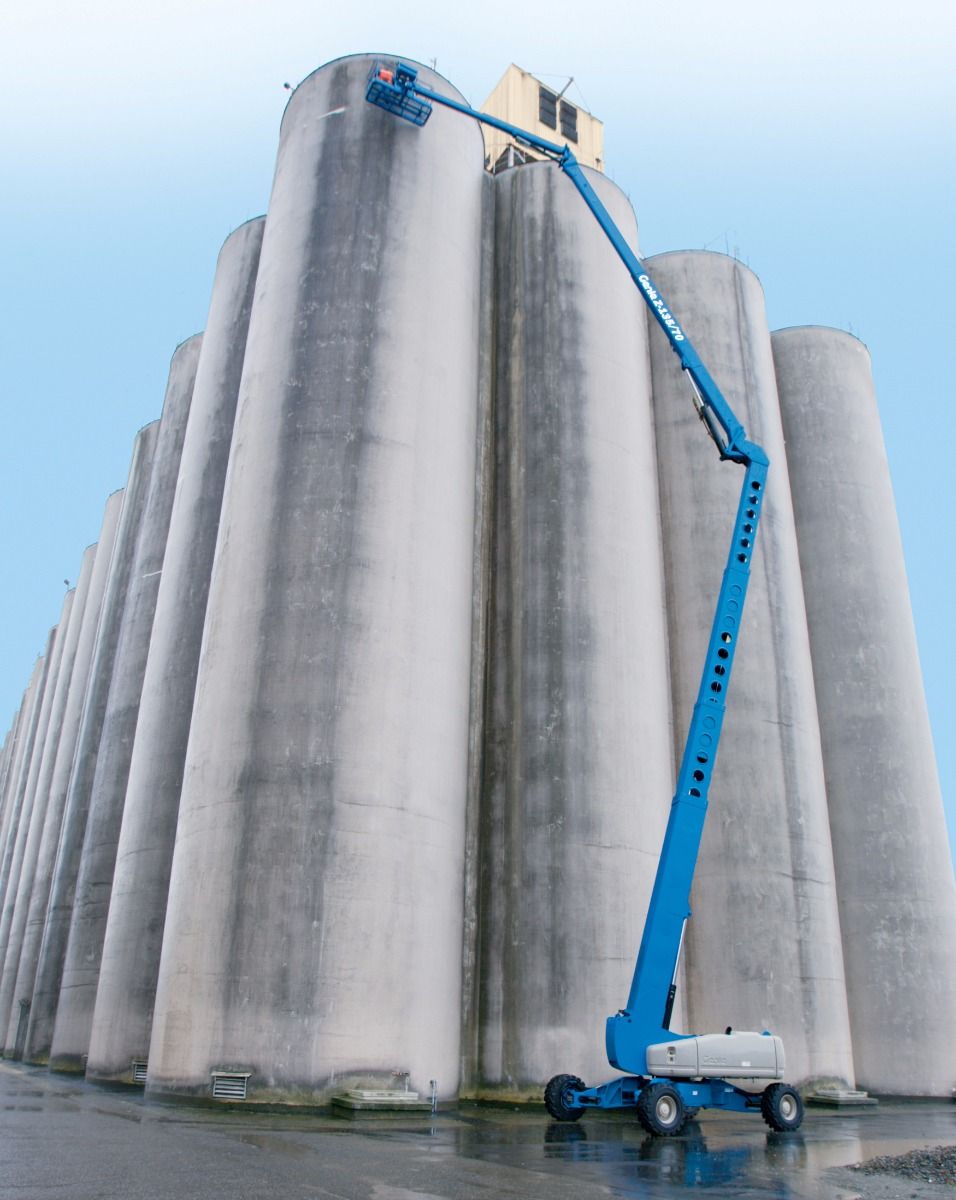

The Genie ZX-135/70 is the biggest boom in Genie’s articulating range, designed for the largest construction and maintenance tasks. Genie’s X-Chassis expanding axle extends for driving and boom operation but retracts when stowed, giving a transport width of just 2.46m so it fits comfortably on a truck. With a maximum working height of 43.15m, the Genie ZX-135/70 is ideal for building and construction work.


More Information
Max. Working Height 43.15m
Max. Horizontal Outreach 21.26m
Lift Capacity 272kg
Power Source Diesel
Weight 21,092kg
Travel Width 2.46m
Lifting Mechanism Articulated Boom
Chassis Type RT Diesel Self propelled
