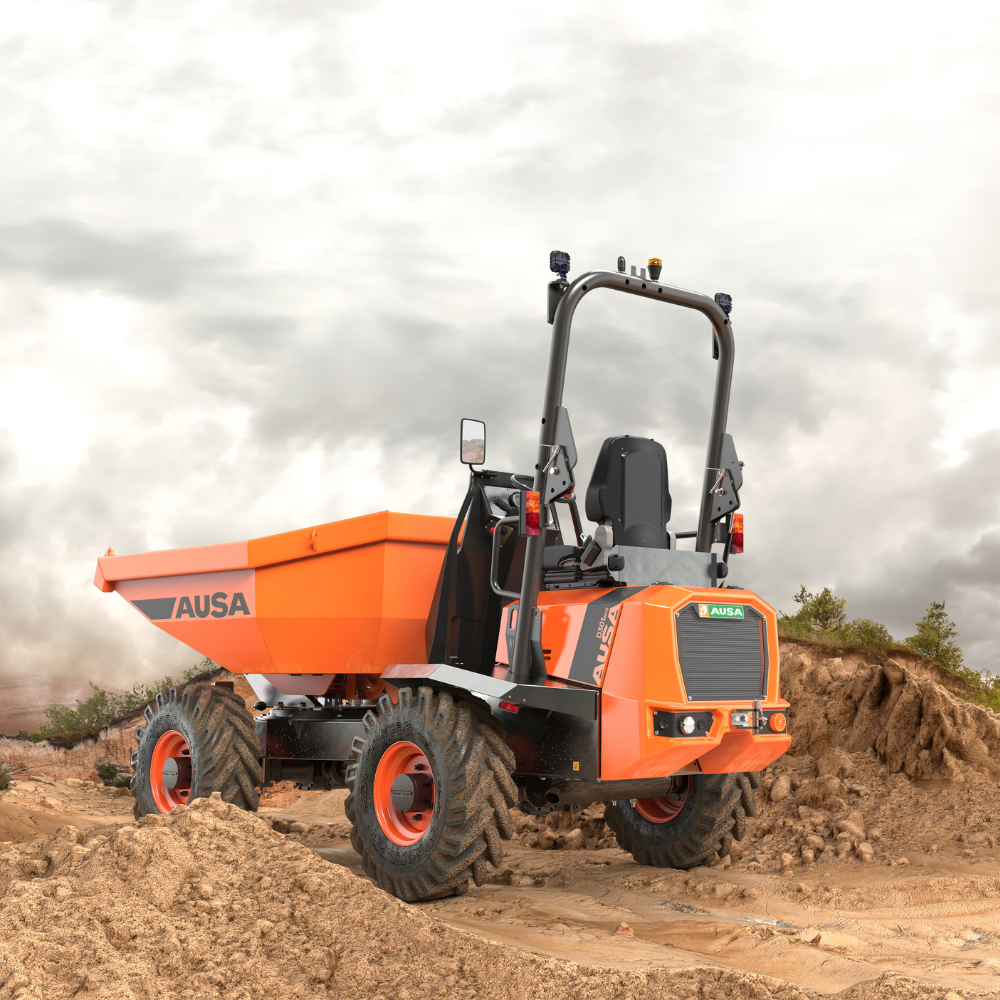

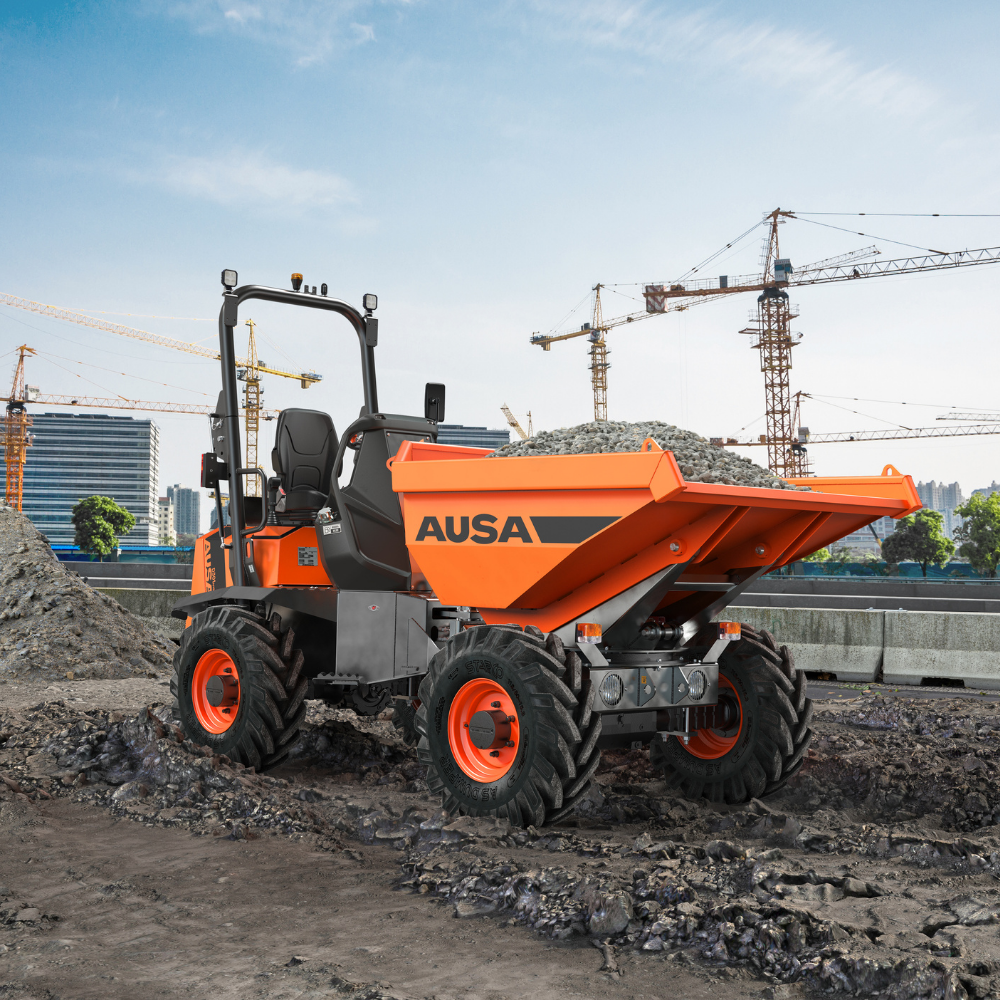

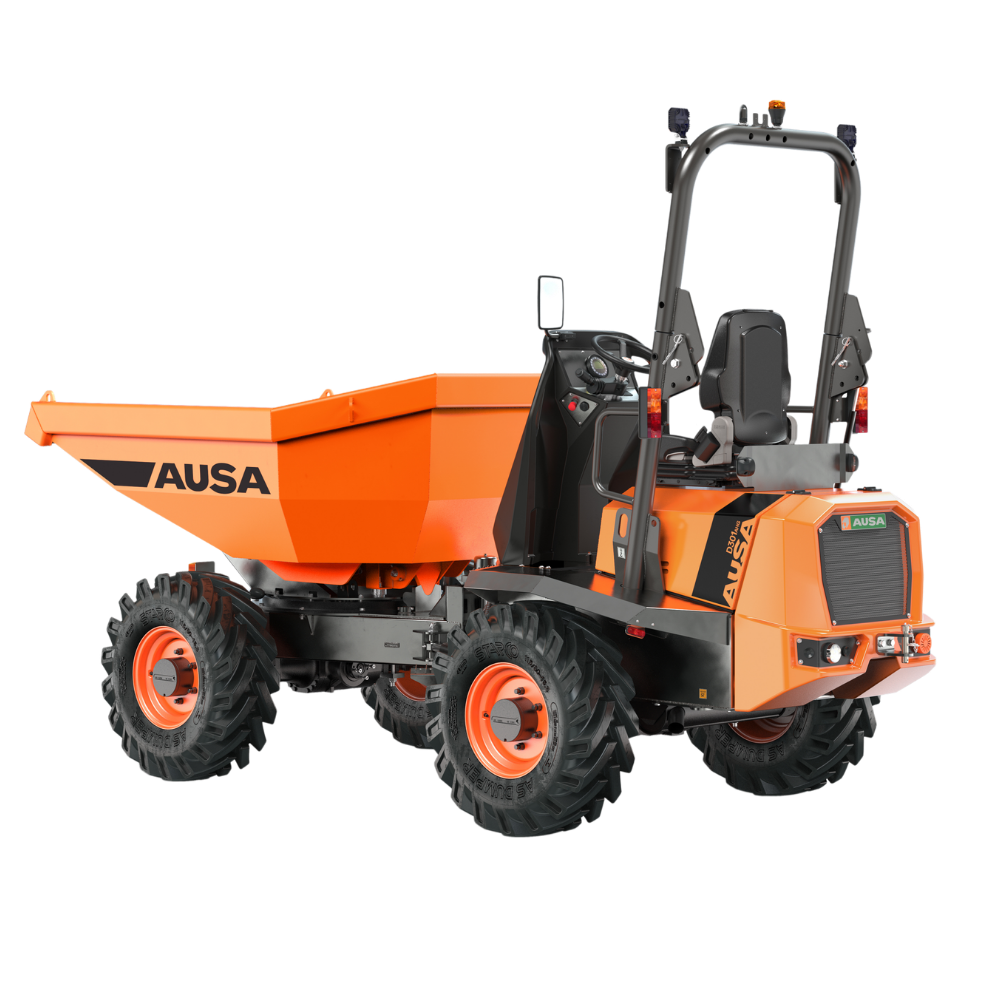

AUSA D 301 AHG 3 Tonne Swivel Dumper
A 3 tonne articulated swivel dumper built for tight access and poor ground. The skip tips to either side or forward, so material goes exactly where it is needed without repositioning the machine, and permanent 4×4 with hydrostatic drive keeps it working on rutted plot roads. Supplied new by APS with pre-delivery inspection, manufacturer-backed warranty and nationwide delivery.
- Load Capacity:
- Weight:
- Travel Width:
- Power Source:
Need some help?
The AUSA D 301 AHG is a 3 tonne articulated swivel dumper designed for sites where access is tight and the ground is poor. It carries 3,000kg, measures 1.75m across and turns inside 3,955mm, so it works between plots and through gateways that stop larger machines.

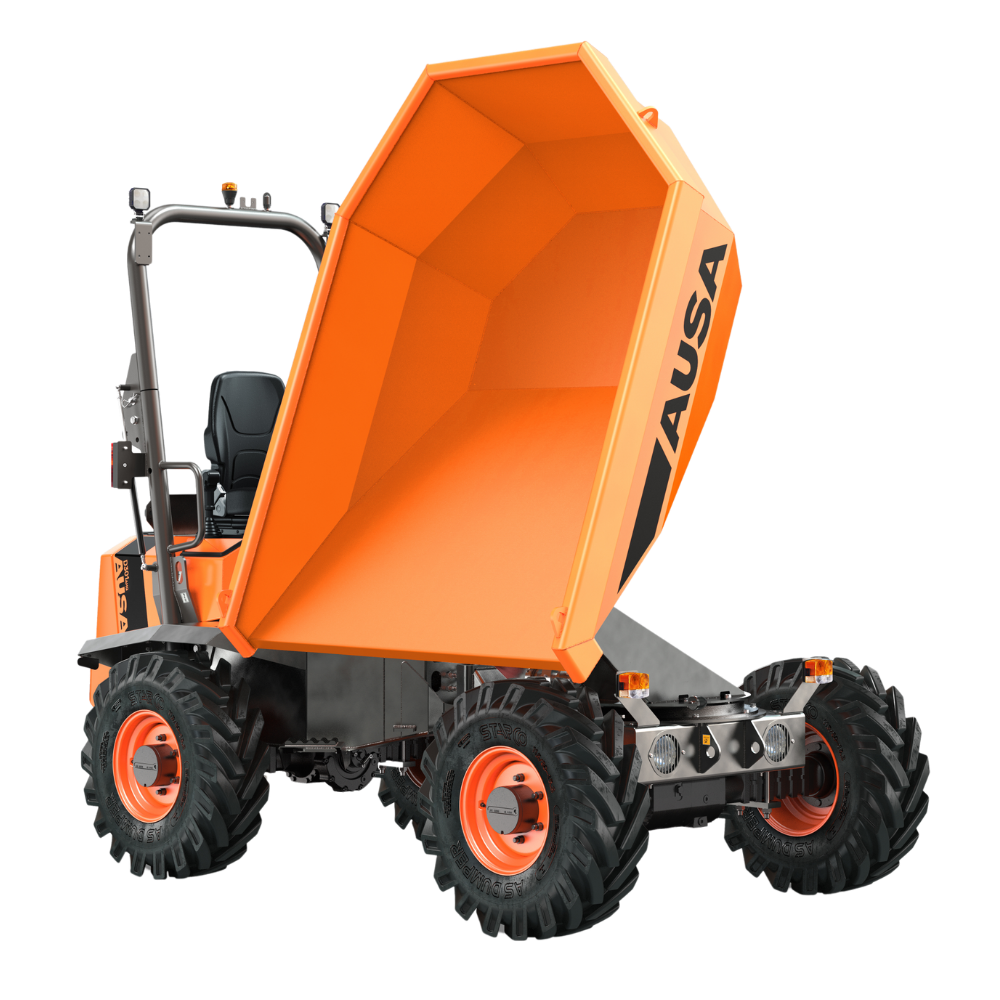

The swivel skip turns to either side as well as forward, so material can be placed along a trench line or into a skip without swinging the whole machine round. On narrow plot roads, that is usually the difference between one clean pass and a three point turn.
An articulated and oscillating chassis keeps all four wheels loaded on rutted or cambered ground, and permanent 4×4 with hydrostatic transmission handles gradients up to 50%. There are no gears to change, which makes control smoother on repeated shuttle runs and easier for less experienced operators.
Power comes from a four cylinder Kubota V1505-E4B rated at 18.5kW and certified to Stage V, specified without a DPF so there is no regeneration cycle to manage. Daily checks are made at ground level under a single large engine cover.
APS supplies the full AUSA dumper range with specification advice, finance and ongoing support. Ask us about finance options, contract rental and APS AfterCare.
Features & Benefits
- 3,000kg payload, 1,742 litre heaped skip: fewer runs to shift the same volume
- Swivel skip: tips to either side or forward without repositioning the machine
- Articulated and oscillating chassis: all four wheels stay loaded on uneven ground
- Permanent 4×4 with 50% gradeability: climbs plot roads, ramps and spoil heaps
- Hydrostatic transmission: no gear changes, smoother control, less driveline wear
- Kubota Stage V engine, no DPF: current emissions compliance with no regeneration to manage
- 1.75m travel width, 3,955mm turning radius: fits gateways and tight compound layouts
- Presence-sensing seat and negative parking brake: will not start unless the operator is seated, will not roll when the engine is off
- Ground level engine access: filters and fluid tanks reached under one cover, so daily checks actually get done
- Optional cameras, proximity sensors and AUSAnow fleet tracking: added visibility and fleet oversight where you need it
