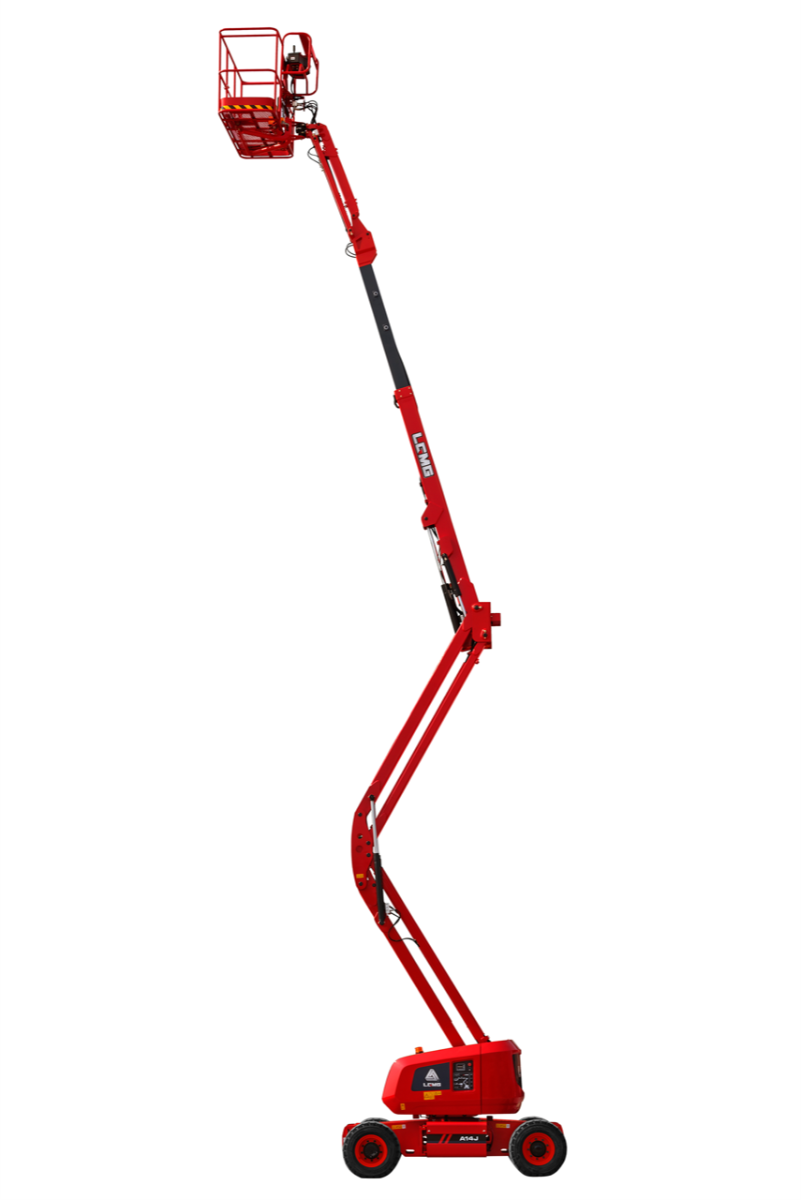

LGMG AR14JE Boom Lift
The LGMG AR14JE is a rough terrain, battery operated boom lift suitable for indoor and outdoor use.
-
Max. Working Height:
15.8m
-
Max. Horizontal Outreach:
7.81m
-
Travel Width:
1.8m
-
Lift Capacity:
230kg
-
Weight:
7,500kg
-
Power Source:
Battery
NEED SOME HELP?
Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk
The LGMG AR14JE boom lifts are purpose built for outdoor construction and industrial applications. Simple and reliable design with industrial features make this machine easy to operate. A standard job offers the ability to reach even the most hard to reach places.
The boom lift provides environmentally friendly, zero emission operation for both indoor and outdoor applications.
Up to 13.8m platform height with 1.5m standard jib, the AR14JE is able to extend over obstacles making it ideal for tight working areas.
- Zero tail swing and compact design enables easy access to tight spaces.
- Proportional control ensures smooth driving, precise positioning and comfortable operation.
- Battery powered and sealed AC drive motor provides quiet and long battery duty cycle.
- Self-leveling platform together with hydraulic platform rotation deliver exceptional productivity.
- Intelligent self-diagnostic system for quick toubleshooting.
Specifications
| Max. Working Height | 15.80m |
|---|---|
| Max. Horizontal Outreach | 7.81m |
| Lift Capacity | 230kg |
| Power Source | Battery |
| Weight | 7,500kg |
| Travel Width | 1.8m |
| Lifting Mechanism | Articulated Boom |
| Chassis Type | Self propelled |
