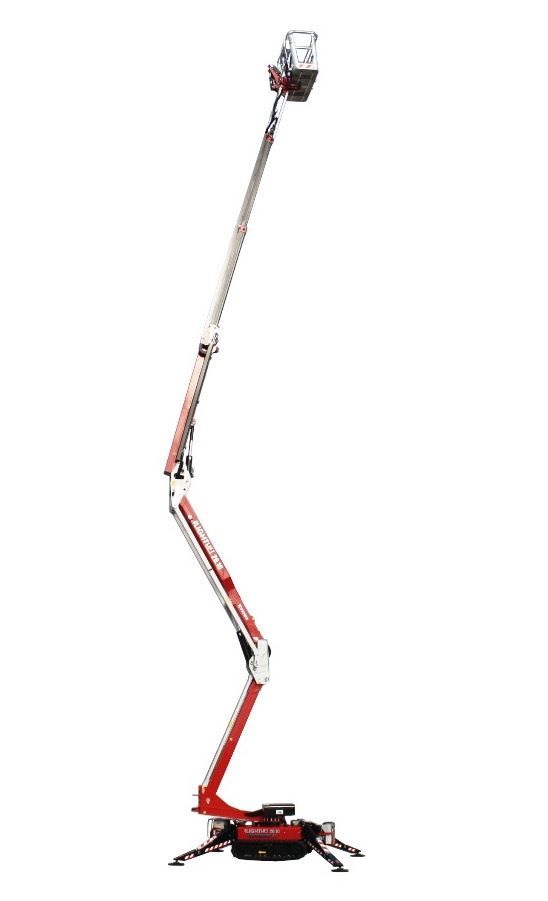

Hinowa Lightlift 20.10 Performance IIIS
The Hinowa Lightlift 20.10 Performance IIIS is a tracked spider lift with a 20.1m working height, 9.7m of horizontal outreach and a 230kg basket, enough for two people and their tools. At 795mm wide with the tracks retracted and just under 2m tall when stowed, it fits through narrow gateways and doorways to reach work that larger platforms cannot get to. New Hinowa 20.10s are for sale from APS, with finance and contract rental available.
- Max. Working Height:
- Max. H Outreach:
- Lift Capacity:
- Weight:
- Travel Width:
- Power Source:
Need some help?
Available in Diesel, Bi-Energy or Lithium Battery.
The Lightlift 20.10 tracked boom features Hinowa’s Performance IIIS system, which is designed to make travel and set-up faster and more efficient than ever. Features include outrigger deployment, levelling and retraction with one touch of a button; auto-speed control that takes ground conditions into account; and wireless remote control. With a minimum travel width of less than 0.8m and stowed height of under 2m, this compact lift can pass through narrow doorways and gateways.
The Hinowa Lightlift 20.10 spider boom provides a working height of up to 20.1m and a maximum horizontal outreach of 9.7m. Its exceptional lift capacity of up to 230kg can accommodate two people with tools, further increasing productivity. Available with a diesel engine combined with a mains electric power of 110 or 220V, or with a lithium battery for pollution-free operation.
Hinowa 20.10 key features
- 20m of reach, under 0.8m wide. 20.1m working height and 9.7m of outreach from a machine just 795mm wide with its tracks retracted.
- One-touch IIIS set-up. The Performance IIIS system deploys, levels and retracts the outriggers at the touch of a button, so set-up is quick and consistent.
- Diesel, mains or lithium. Run on diesel outdoors, plug into 110V or 230V mains, or choose the 7.2kWh lithium pack, rated by Hinowa at 4 to 5 hours of continuous work.
- Two people and their tools. The basket carries 230kg: two operators at 80kg each plus 70kg of tools and materials.
- Tracks that widen on site. The tracks widen from 795mm to 1,095mm for stability when moving on site, and automatic speed control adjusts travel to the ground.
- Wireless remote control. Drive and position the machine by wireless remote, so the operator can guide it through tight access routes.
Hinowa 20.10 frequently asked questions
What working height and outreach does the Hinowa 20.10 have?
The Hinowa Lightlift 20.10 reaches a working height of 20.1m with up to 9.7m of horizontal outreach. The basket carries up to 230kg, which is two people and their tools, and the boom rotates a full 360°.
Will the Hinowa 20.10 fit through a gateway or doorway?
With its tracks retracted it is 795mm wide and just under 2m tall, so it passes through openings wider than 0.8m. It is about 5m long including the basket, so check the turning space on the way in. Once through, the tracks widen to 1,095mm for stability.
Can the Hinowa 20.10 be used indoors?
Yes. The lithium battery version runs with zero emissions. Hinowa rates its 7.2kWh pack at 4 to 5 hours of continuous work, with about 2 hours to recharge to 80%. The diesel version can also run from 110V or 230V mains power.
Is the Hinowa 20.10 for sale new and used?
Yes. APS sells the Hinowa 20.10 new, and approved used 20.10s when we have them in stock. See our used Hinowa spider lifts for sale. You can buy outright, use finance or take a contract rental.
What inspections and servicing does the Hinowa 20.10 need?
Like every machine that lifts people, it needs a LOLER thorough examination at least every 6 months. Our engineers carry out LOLER inspections for access platforms nationwide, and our Fixed Price Service Plans include two a year plus a full service.
Outrigger pads are recommended with this equipment. Find the right sized pads here >>
