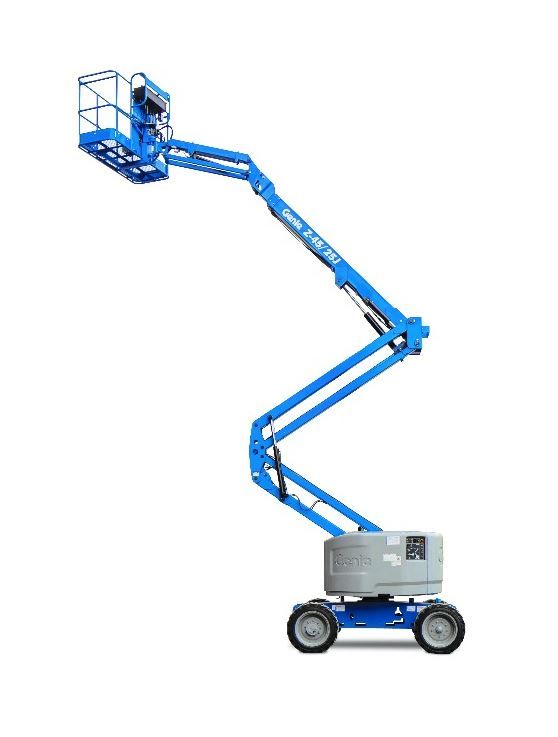

Genie Z-45/25J RT 4WD

Genie Z-45/25J RT 4WD Key Facts

  • Max. Working Height Max. Working Height: 15.9m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 7.5m
  • Travel Width Travel Width: 2.29m
  • Lift Capacity Lift Capacity: 227kg
  • Weight Weight: 6,078kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie Z-45/25J RT 4WD Key Facts

  • Powerful 4WD for rough terrain
  • Up to 227kg lift capacity - available with up to 454kg as the Z-45/25 XC
  • Positive drive traction system and active oscillating axle
  • Tight turning radius and zero tail swing
  • Self-levelling platform with 227kg safe working load
  • Features a standard 1.52m jib for better positioning and extra manoeuvrability
  • Also available with DC electric or Bi-Energy drive trains

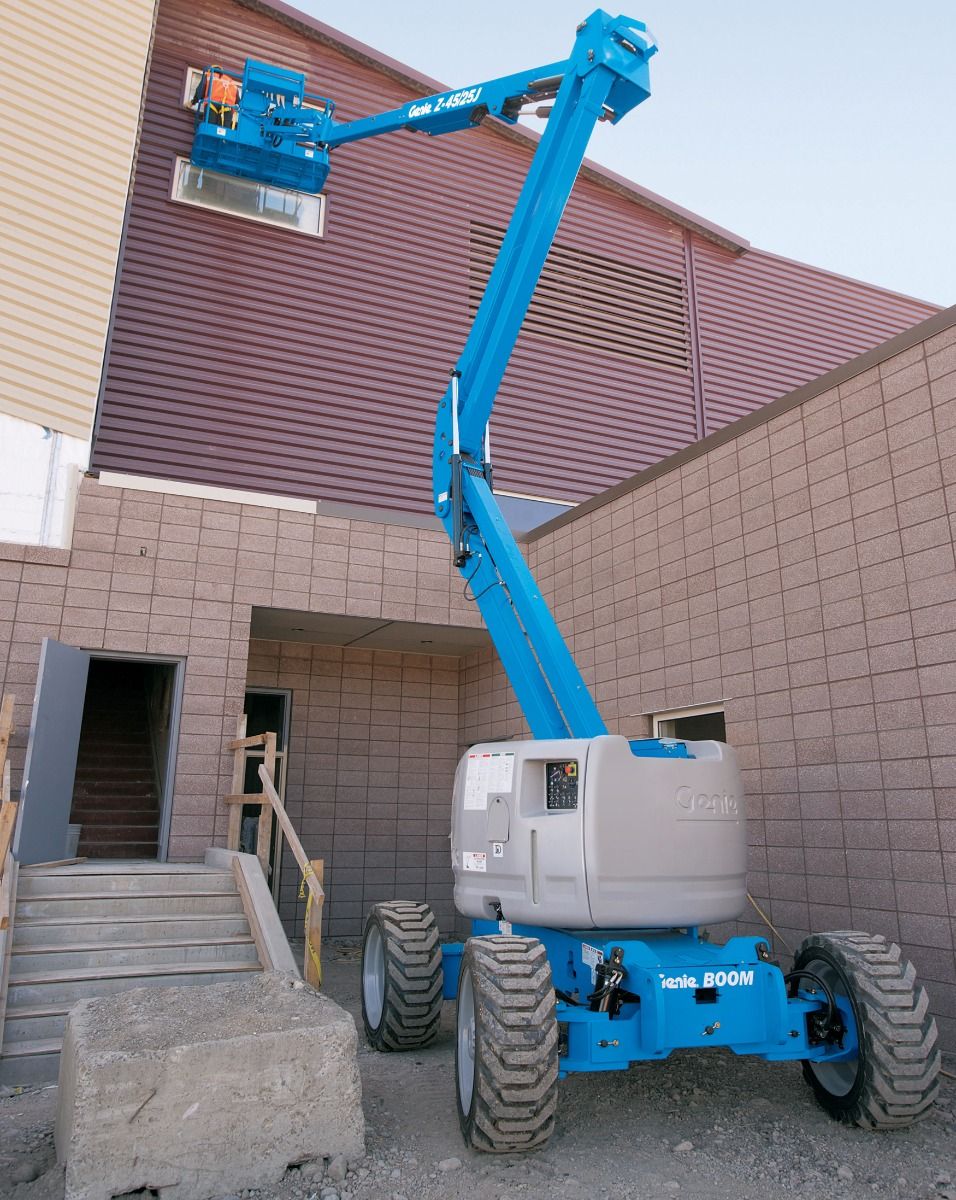

An extremely popular articulating rough terrain boom in the UK, the Genie Z-45/25J RT provides a maximum working height of just under 16m, with superb “up and over” capabilities. It is also available without the 1.5m jib as the Z-45/25 RT.


More Information
Max. Working Height 15.90m
Max. Horizontal Outreach 7.50m
Lift Capacity 227kg
Power Source Diesel
Weight 6,078kg
Travel Width 2.29m
Lifting Mechanism Articulated Boom
Chassis Type RT Diesel Self propelled
