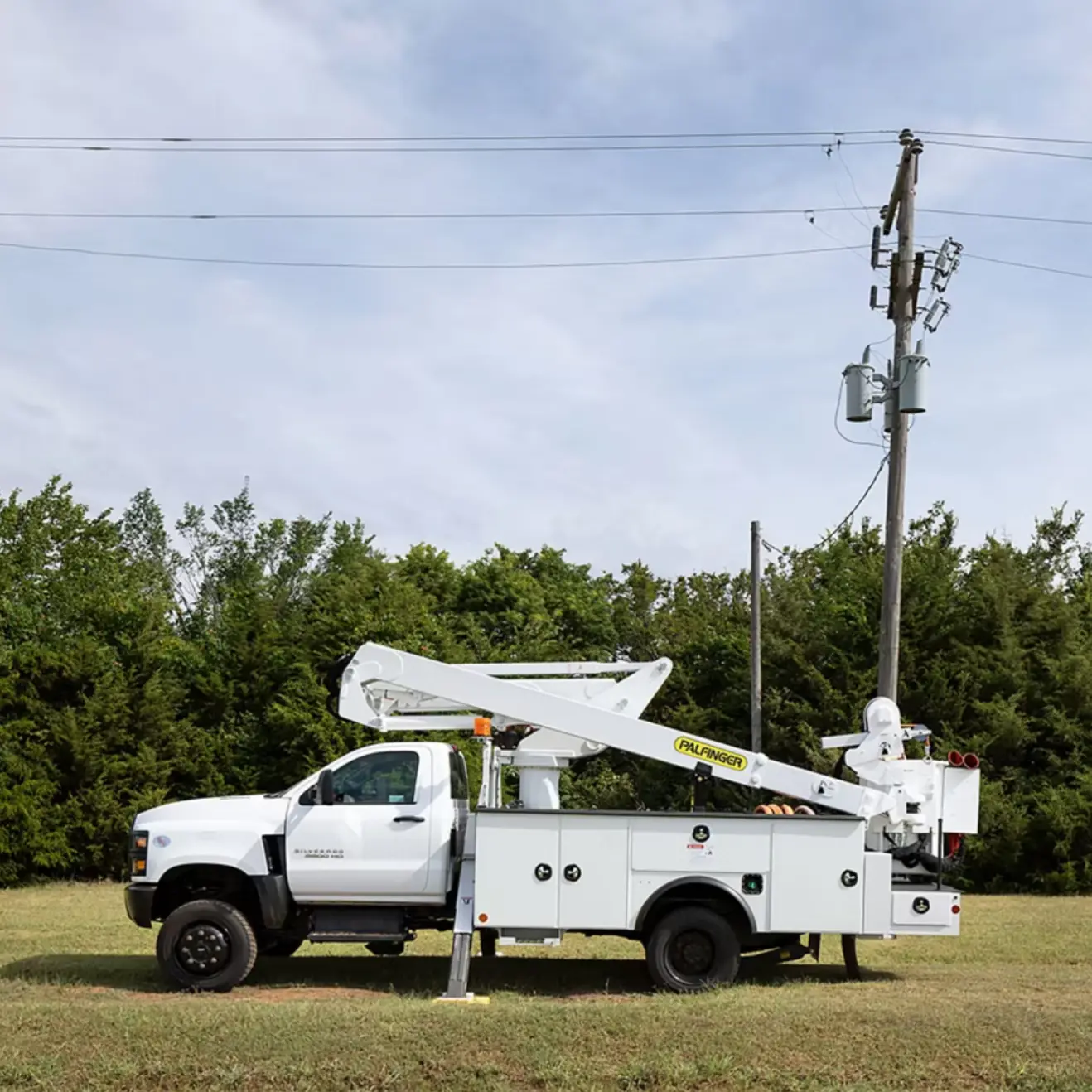

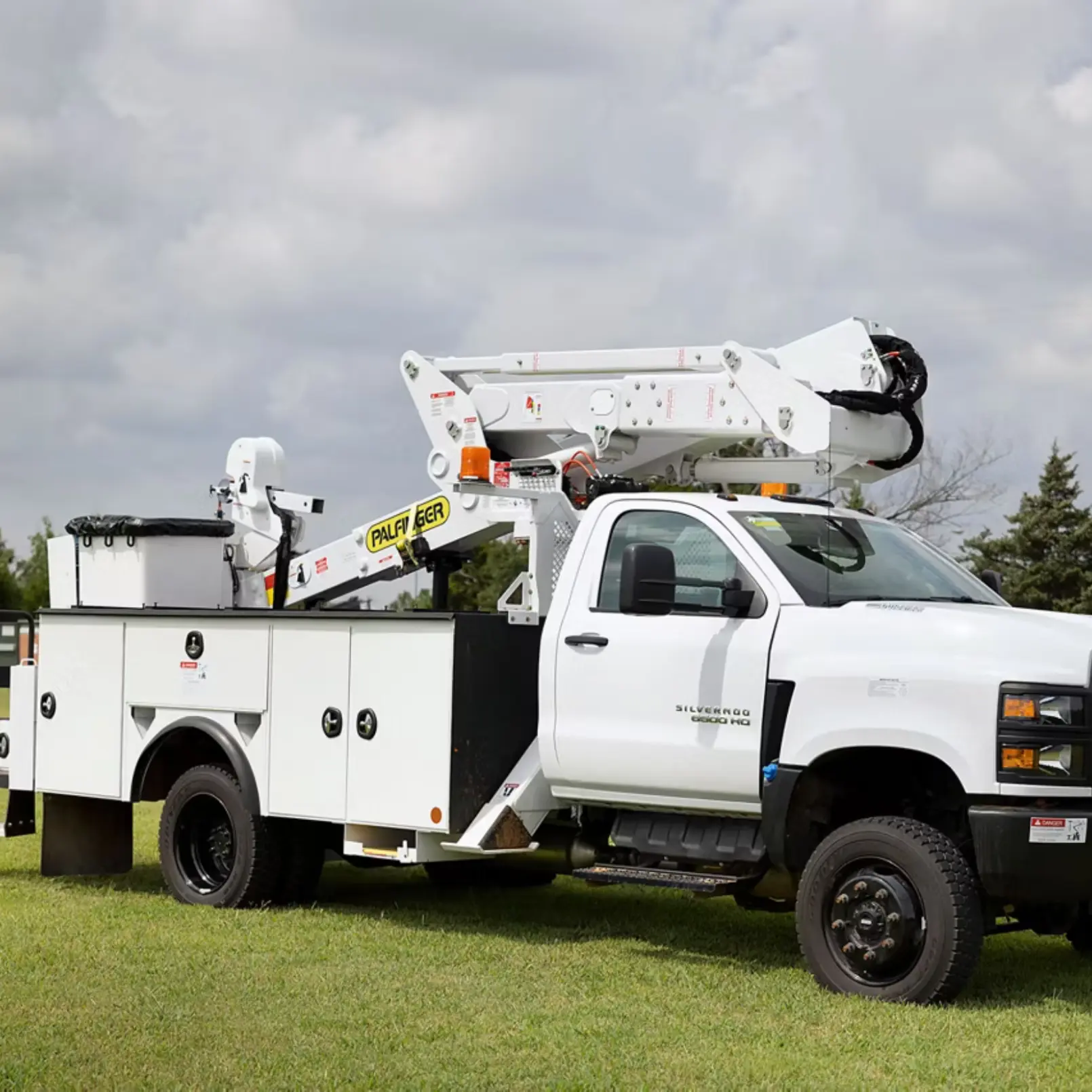

Palfinger ETC MH 40 IH

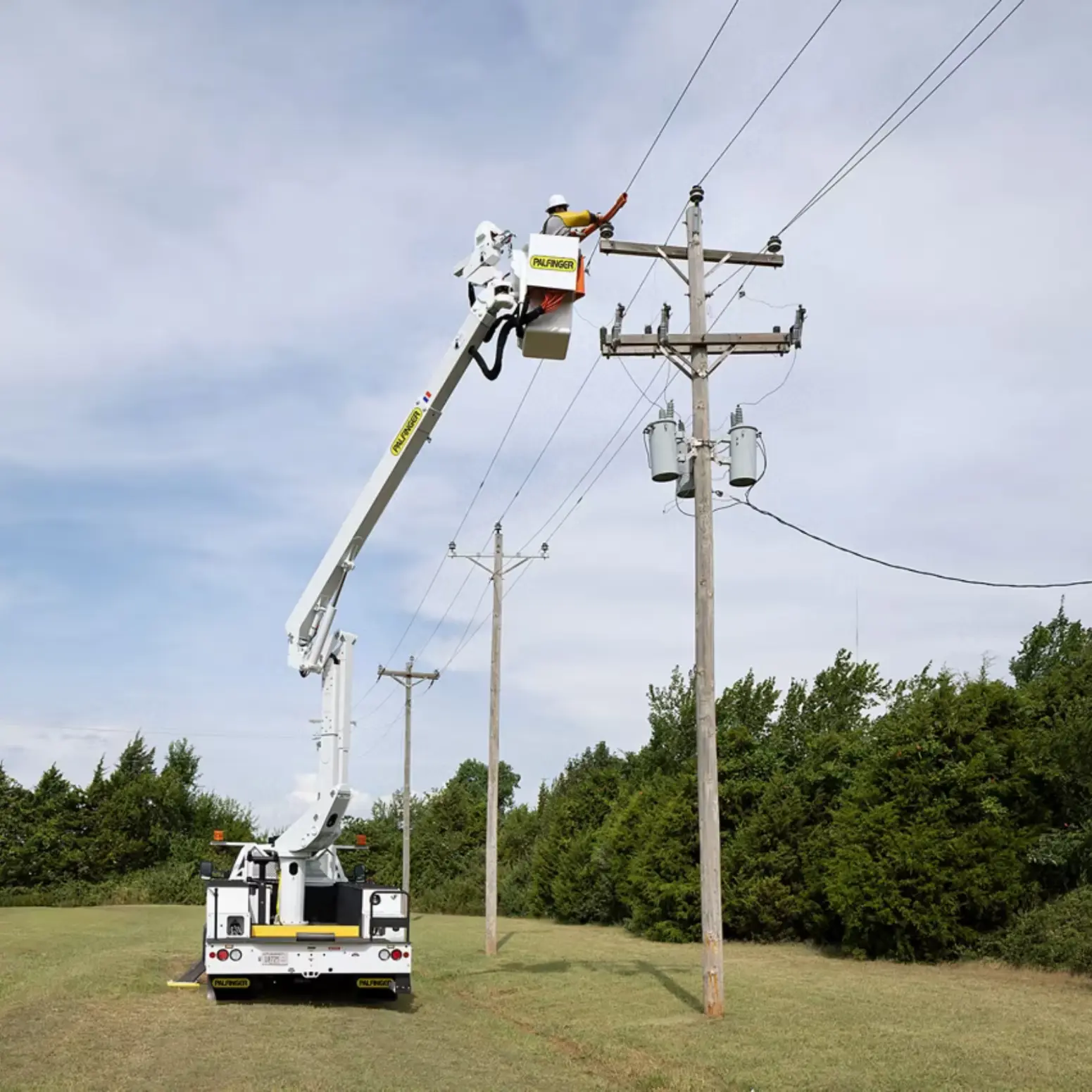

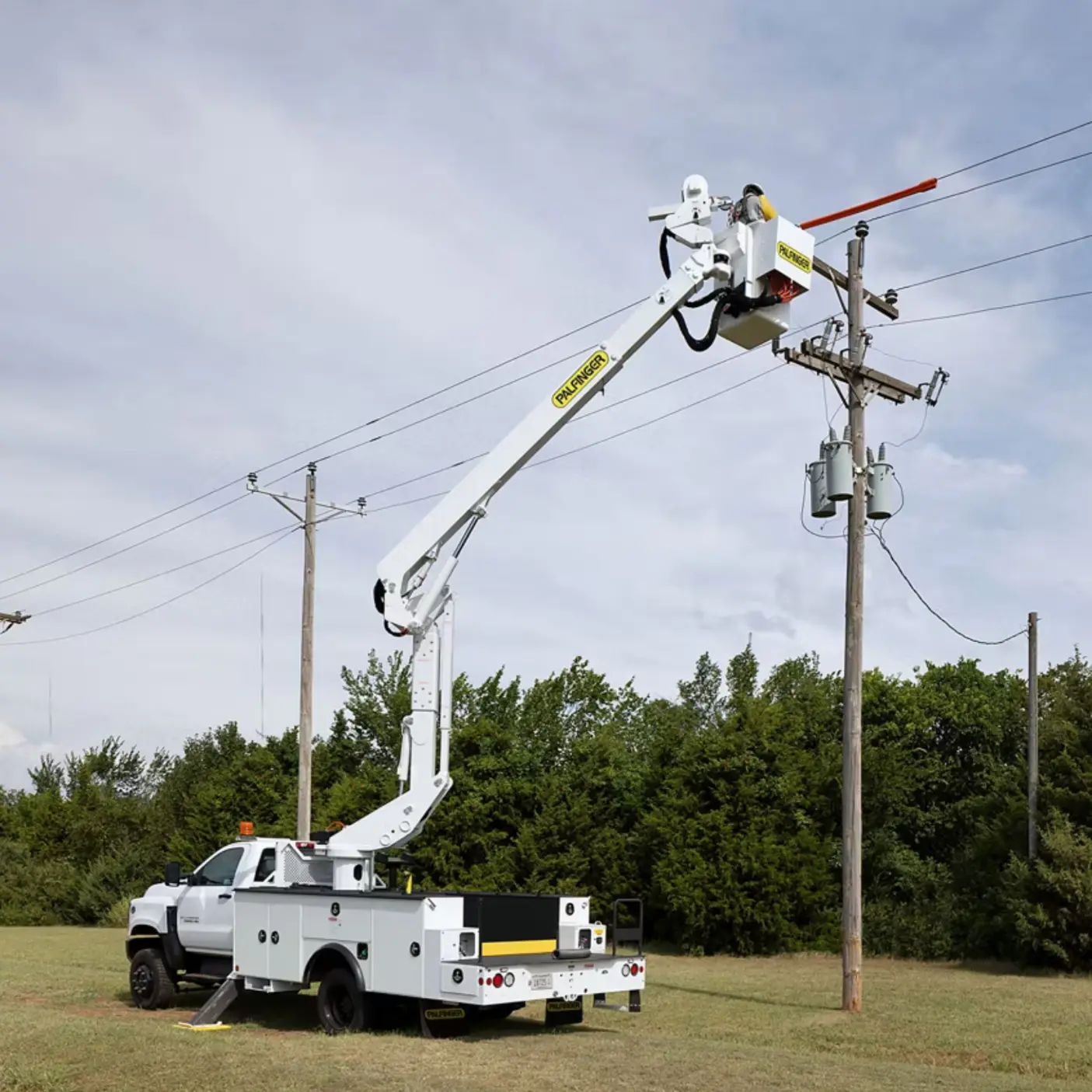

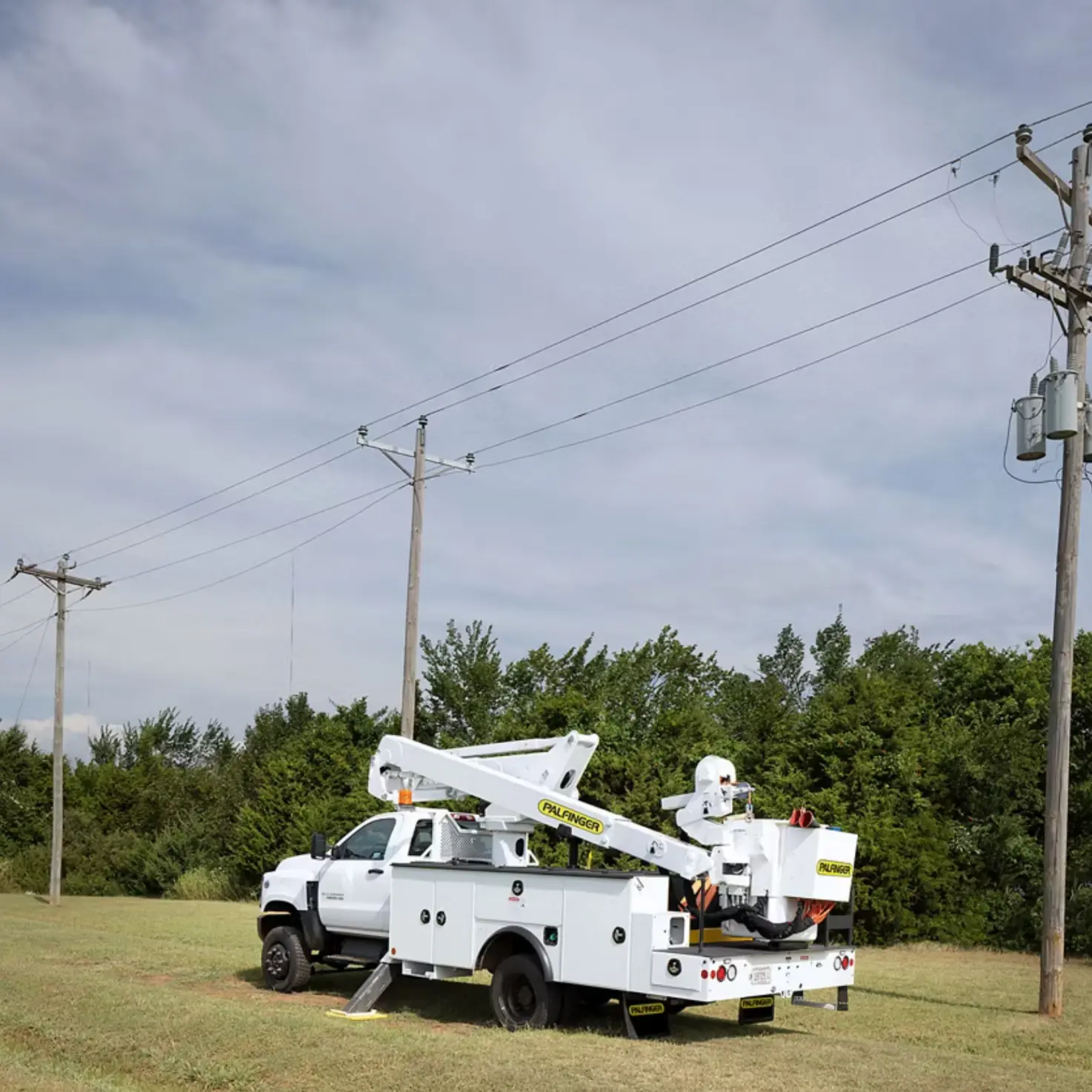

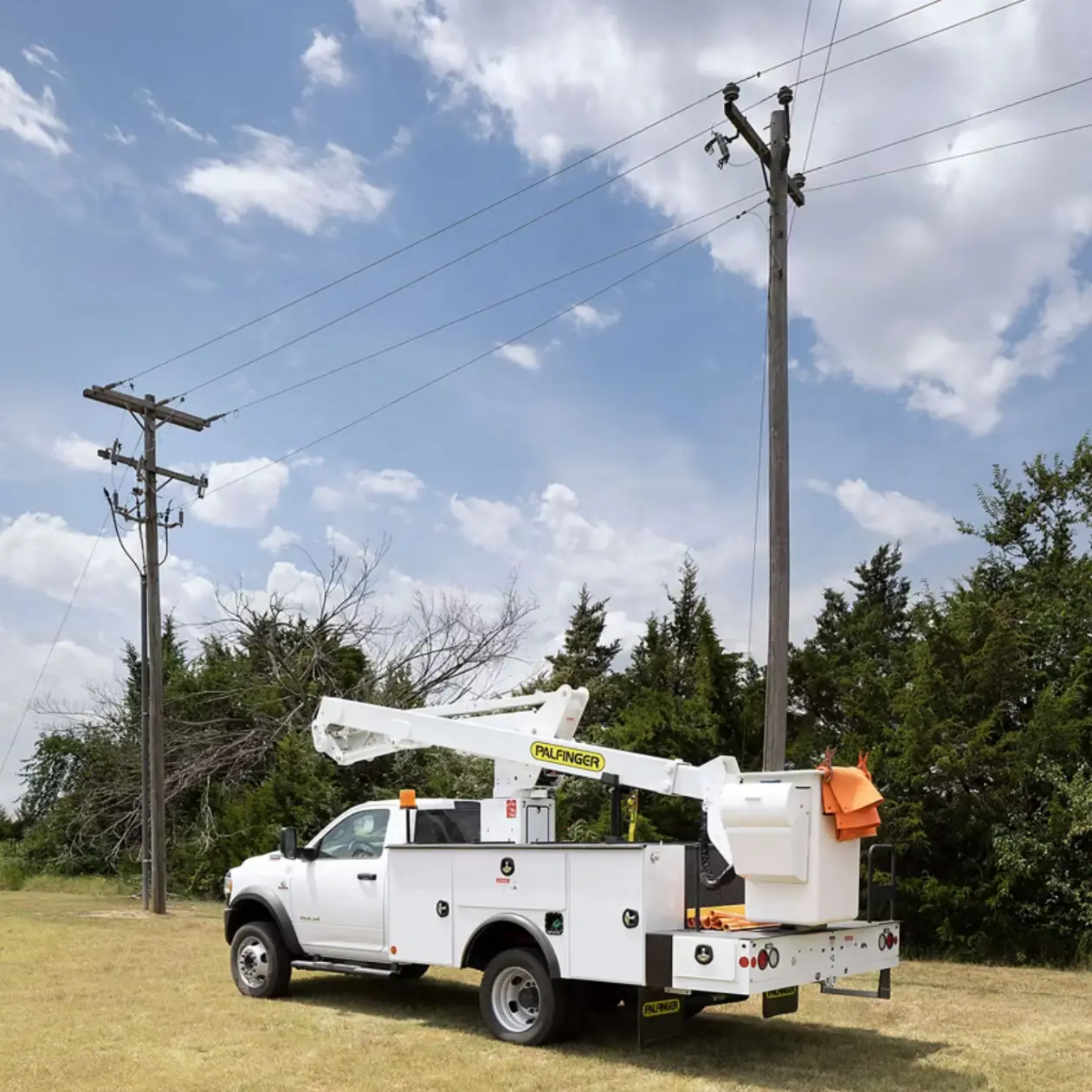

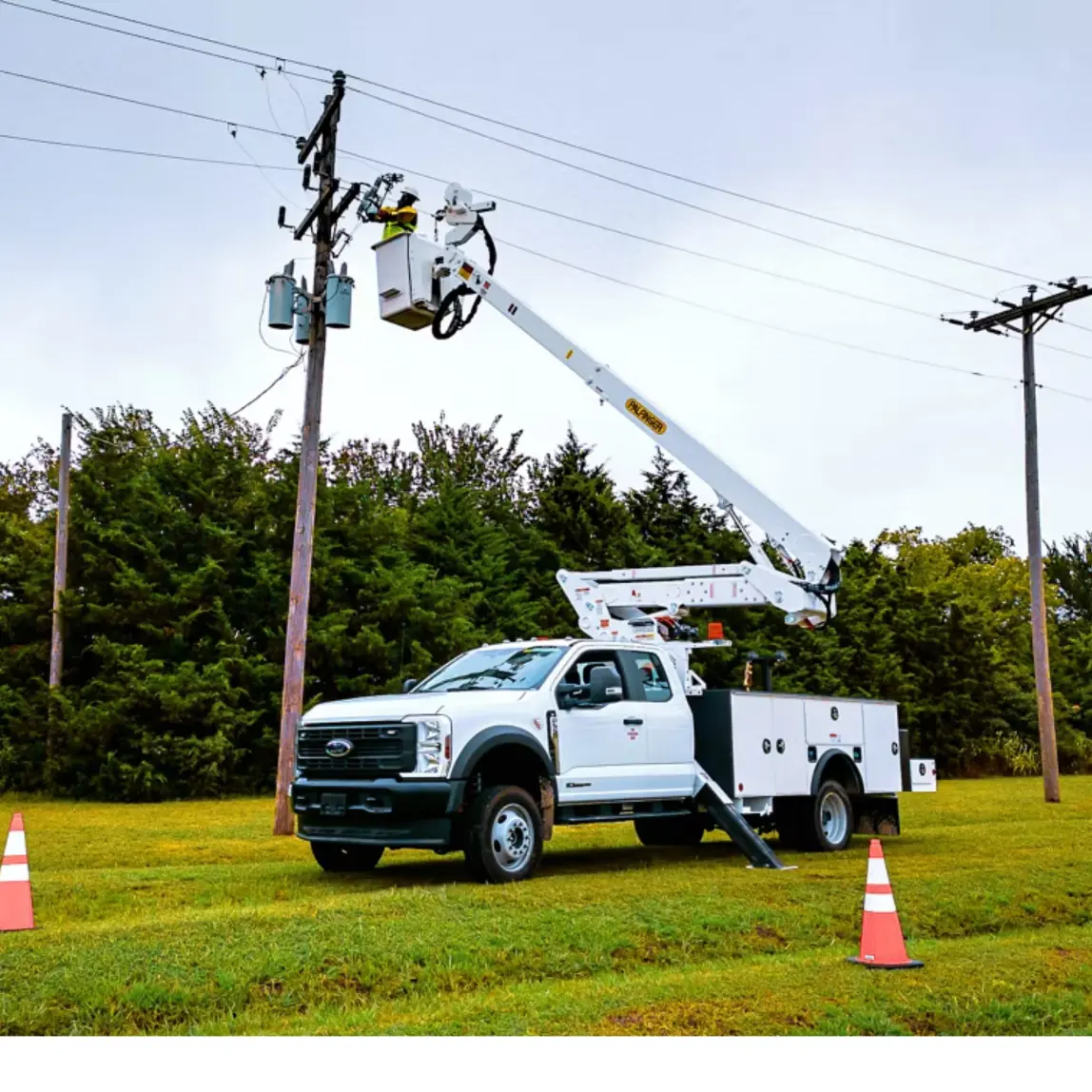

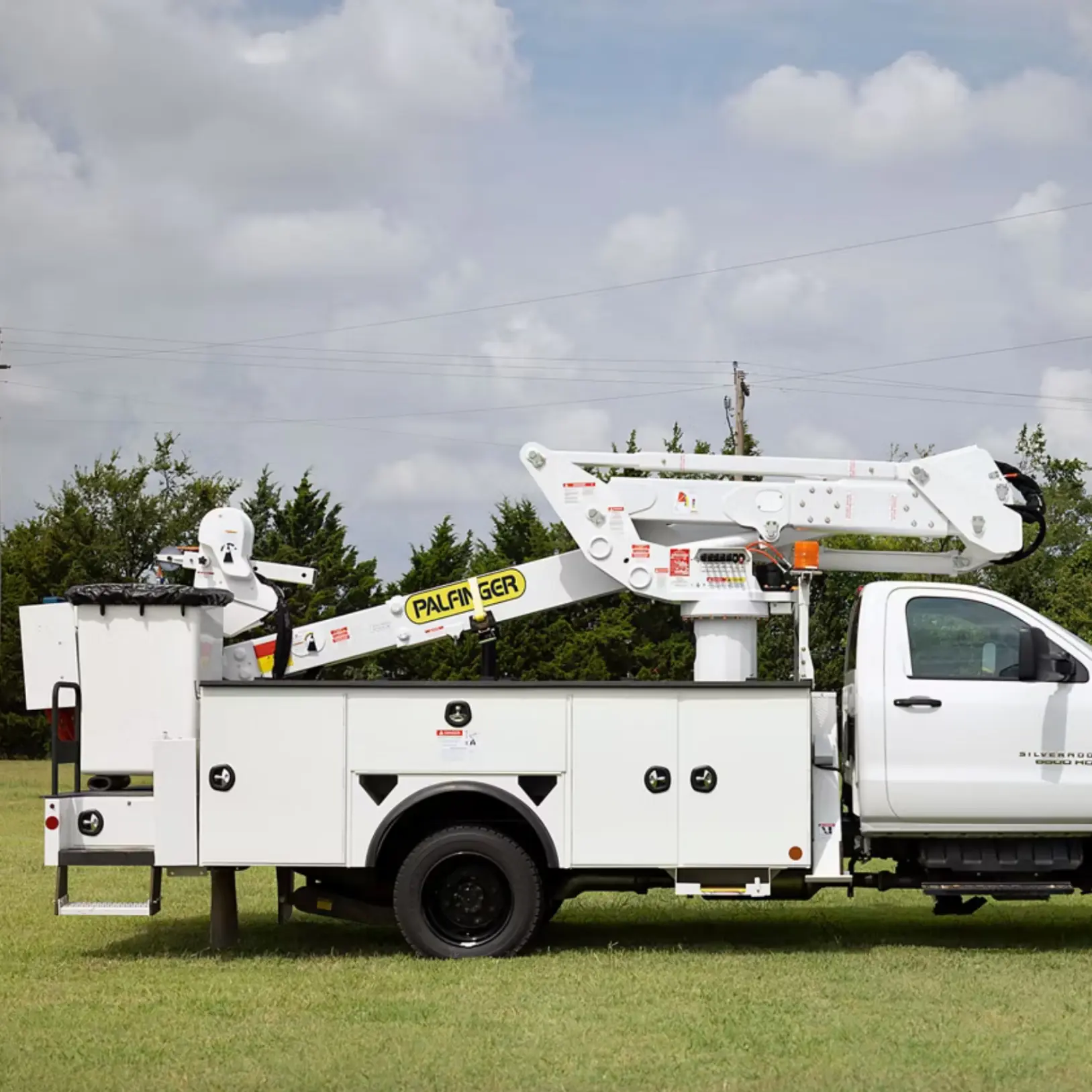

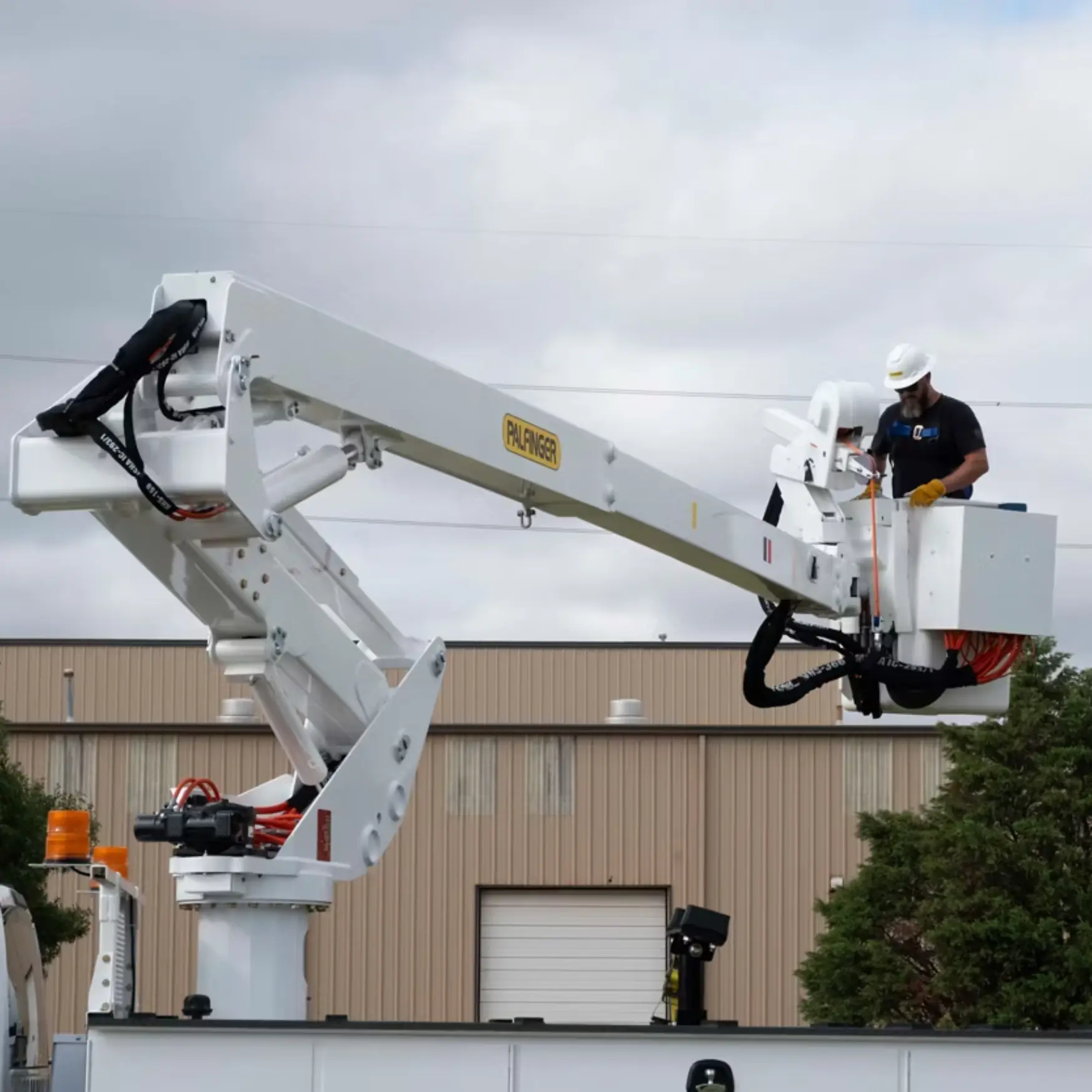

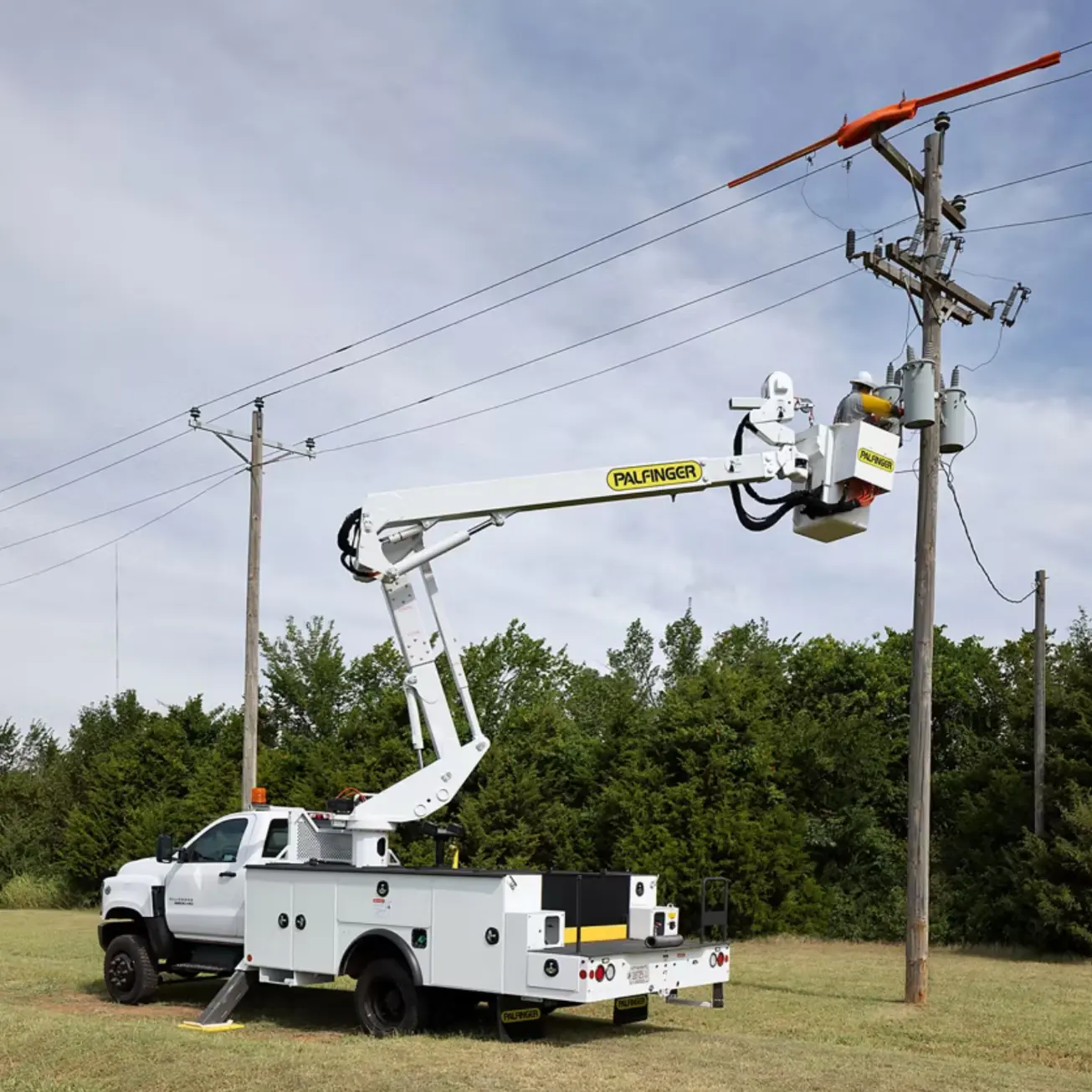

The Palfinger ETC MH 40 IH is a powerful insulated articulating and telescopic bucket truck engineered for operators who need maximum reach, flexibility, and load-handling capability in utility, telecom, and construction applications. Its rigid insulated boom meets ANSI A92.2 Category C standards (up to 46 kV) and provides 360° continuous rotation for safe, precise, and versatile operation.

With a working height of 45’ (13.72 m), side reach of 30’ (8.53 m), and platform capacity of 400 lb (181 kg), the ETC MH 40 IH allows crews to tackle elevated tasks efficiently. The top-mounted 3 ft (0.9 m) jib with hydraulic lift and winch handles up to 1,000 lb (454 kg), while maintaining 300 lb (136 kg) capacity at full side reach. Optional 2 ft elevator extensions further increase flexibility for high-demand material handling.

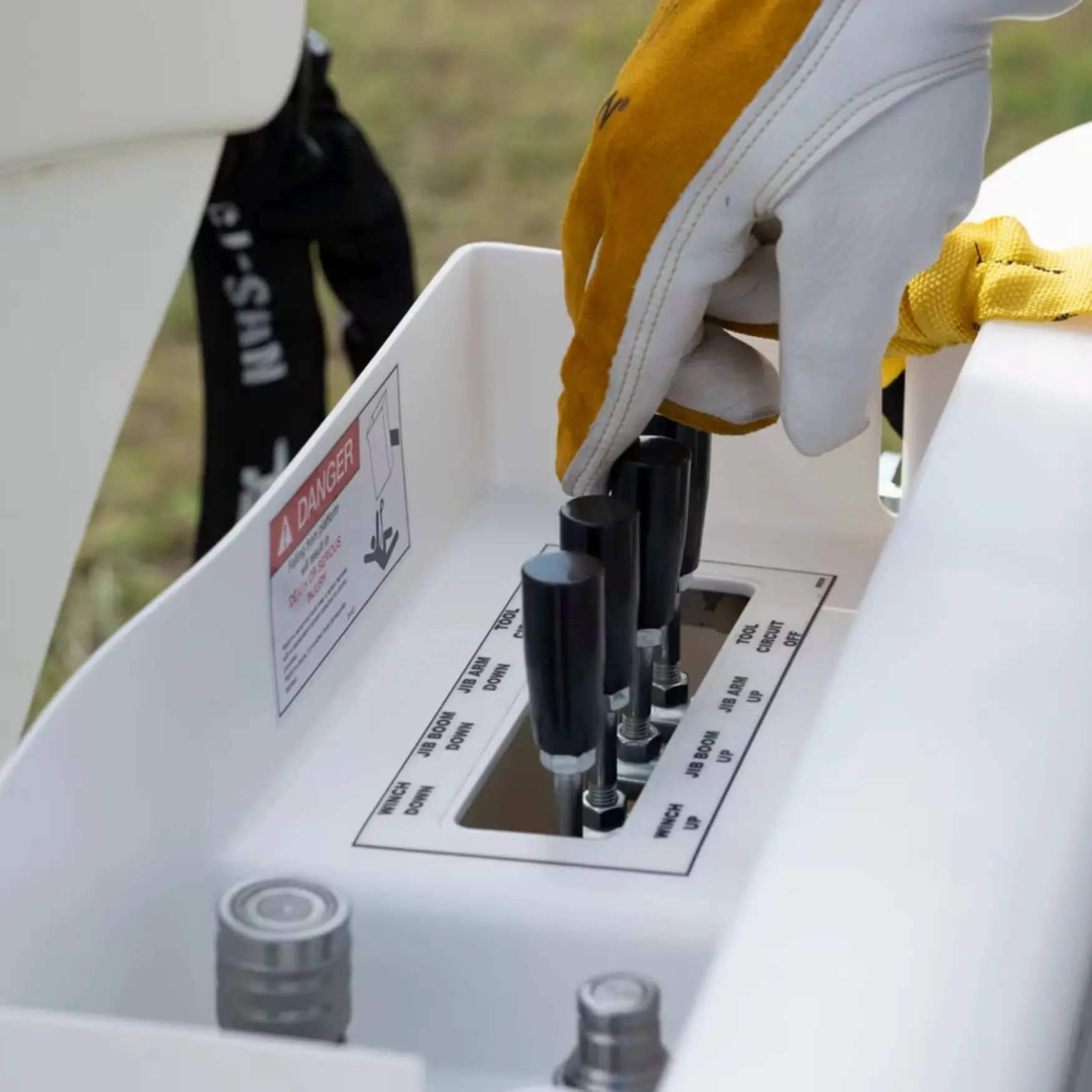

Equipped with single-hand proportional upper controls, hydraulic bucket rotator (180°), tool circuits, and platform leveling (automatic/manual), the ETC MH 40 IH ensures intuitive, efficient, and safe operation. Additional features include outrigger interlocks, emergency descent valve, adjustable boom wear pads, and powder coating for durability and corrosion resistance. Its class-leading aerial rigidity minimizes bounce, delivering precise handling even under heavy loads.

Key Features

• 45’ (13.72 m) working height for elevated access
• 30’ (8.53 m) side reach for extended lateral coverage
• 400 lb (181 kg) platform capacity for operators and tools
• Top-mounted 3 ft (0.9 m) jib with hydraulic lift and 1,000 lb (454 kg) capacity
• Insulated boom for safe work near energized lines up to 46 kV

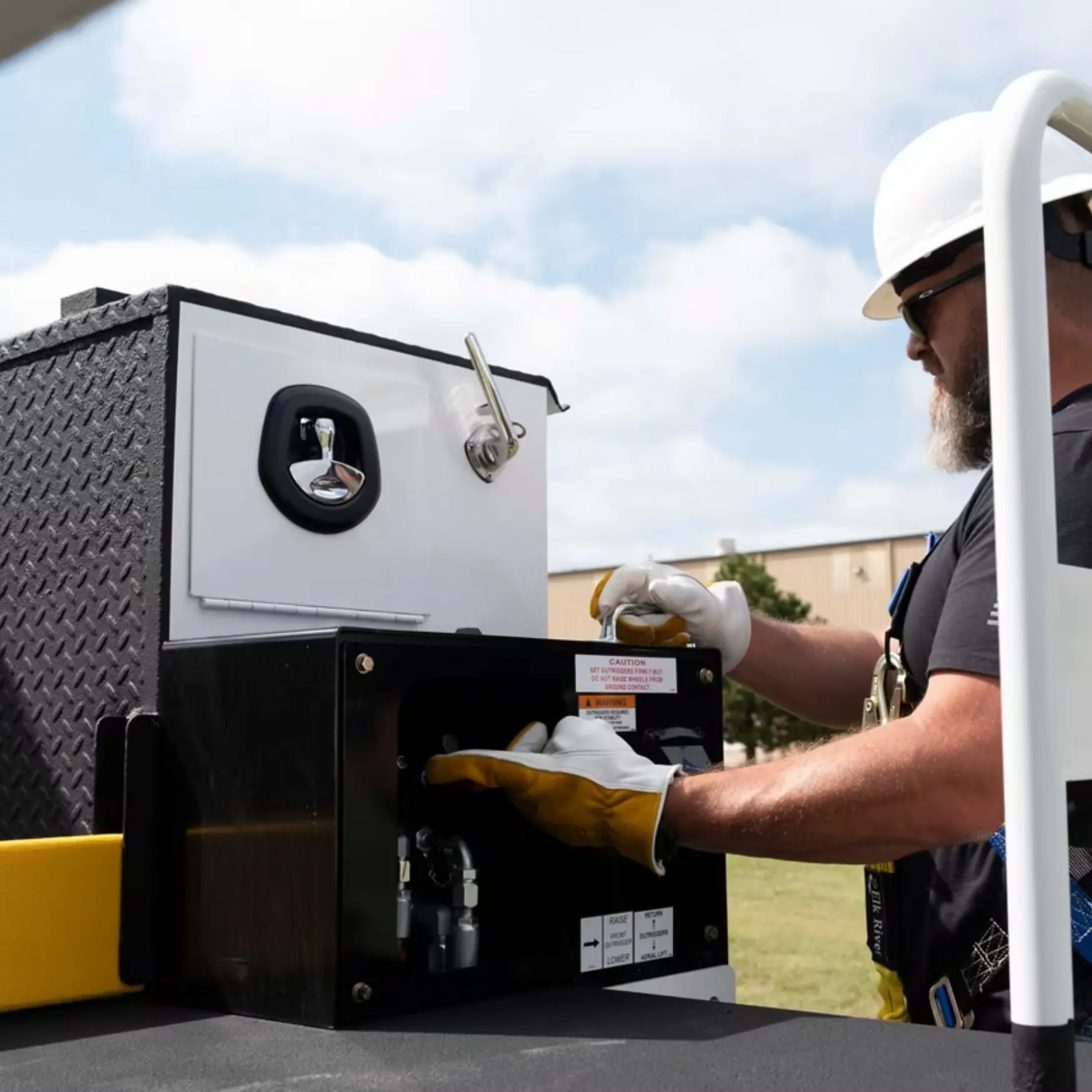

• Single-hand proportional controls with start-stop, variable speed, and emergency descent
• Hydraulic platform leveling (automatic/manual) and hydraulic tool circuit

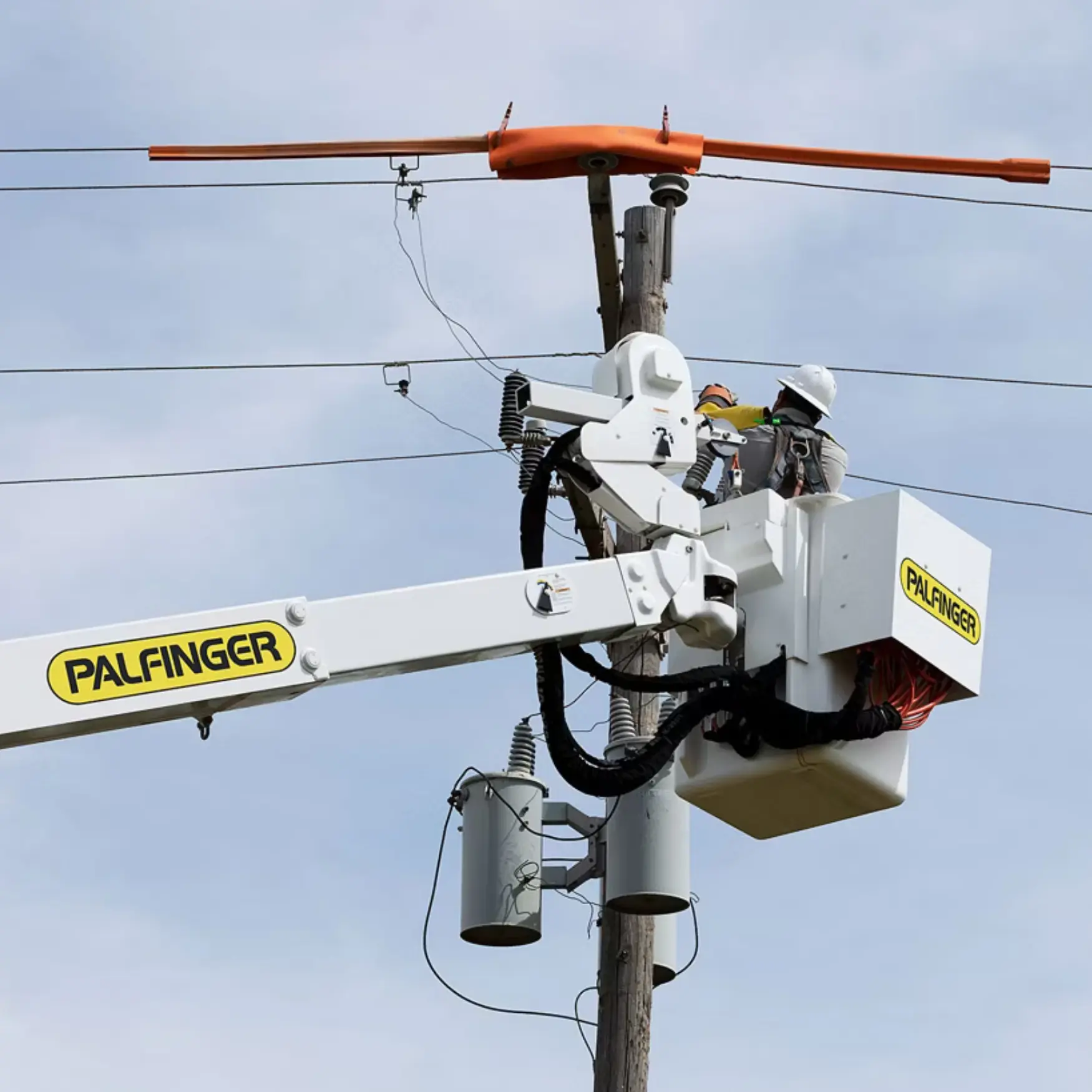

• Continuous 360° rotation and hydraulic bucket rotator (180°)
• Optional 2 ft elevator for added reach and flexibility
• Powder-coated finish and adjustable boom wear pads for durability

Benefits

• Safe high-voltage operation: Insulated boom and ANSI-certified design for energized environments
• Exceptional material handling: Top-mounted jib lifts up to 1,000 lb, enhancing versatility
• Precise positioning: Hydraulic feathering, continuous rotation, and bucket rotator provide full control
• Flexible workflow: Single-hand controls free the operator’s other hand for tools or stability
• Reliable and durable: Rigidity and powder-coated construction ensure long-lasting performance

The Palfinger ETC MH 40 IH is ideal for utility, telecom, and industrial applications, offering safe, flexible, and high-capacity aerial access for both personnel and materials.
