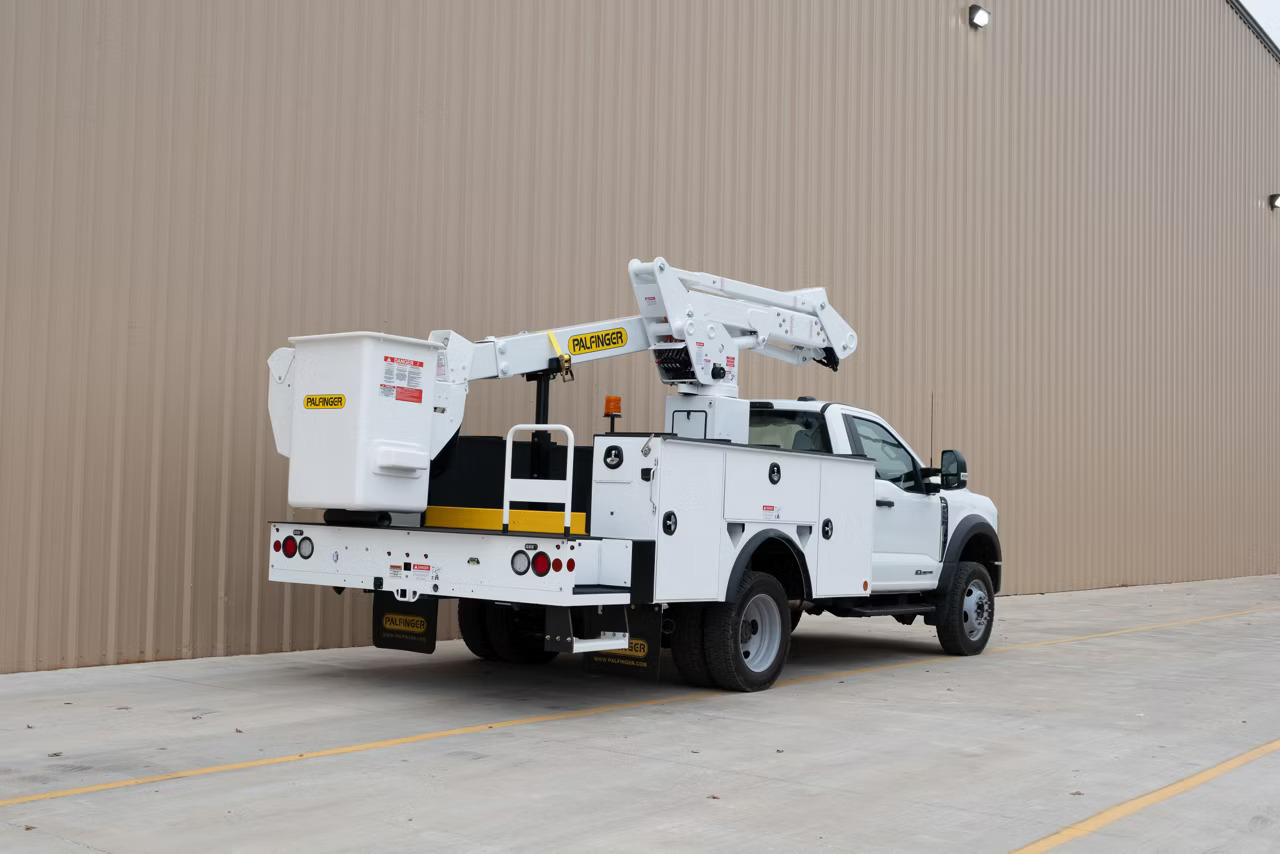

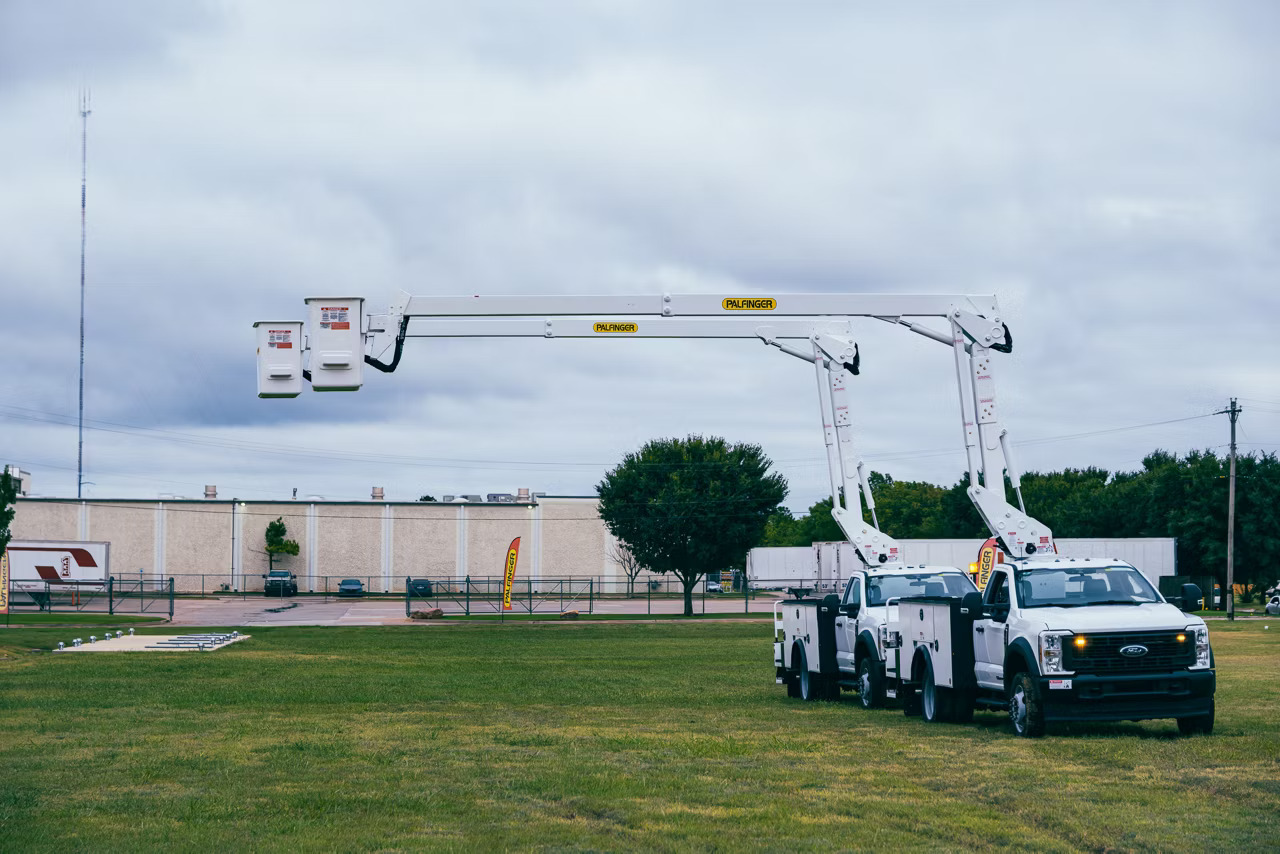

Palfinger ETC 37 IH
The Palfinger ETC 37 IH is an insulated articulating/telescoping bucket truck with a 42’ working height, 28’ side reach, and 350 lb basket capacity, delivering safe, reliable, and efficient performance for electrical and utility applications.
- Max. Working Height:
- Max. H Outreach:
- Max. Lifting Height:
- Lift Capacity:
- Load Capacity:
- Weight:
- Travel Width:
- Power Source:
- Rated Volume:
- Translation Speed:
- Travel Height:
Need some help?
Designed for operators who require safe, precise, and reliable access to elevated work areas, the ETC 37 IH is ideal for electrical and utility applications. Its insulated boom protects crews when working on power lines and other energized environments up to 46 kV, while full-pressure hydraulic controls ensure smooth, efficient, and accurate operation.
With a working height of 42’ 1” and a side reach of 28’, the ETC 37 IH allows operators to access hard-to-reach areas such as utility poles, transformers, and industrial installations. The bucket supports 350 lb, configurable up to 400 lb for additional payload needs, allowing operators to safely handle tools and equipment.
The aerial unit features full-pressure hydraulic controls at both the basket and turret, continuous 360° rotation, and feathering capabilities for precise positioning. Internally mounted holding valves lock cylinders in place during hydraulic failure, enhancing safety. Optional features, including outriggers, auxiliary power units (APU), tool circuits, and increased bucket capacity, allow the ETC 37 IH to be tailored to specific job requirements.
Key Features
- 42’ 1” working height for elevated access tasks
- 28’ side reach for extended lateral coverage
- 350 lb bucket capacity (configurable to 400 lb)
- Insulated articulating/telescoping boom for safe utility work up to 46 kV
- Full-pressure hydraulic controls at basket and turret for precise operation
- Continuous 360° rotation with shear ball rotation and manual rotation capability
- Internally mounted holding valves for cylinder safety in hydraulic failure
- Optional outriggers, APU, tool circuits, and custom bucket upgrades
Benefits
- Safe high-voltage operation: Insulated boom protects operators on power lines up to 46 kV
- Precise positioning: Hydraulic feathering and continuous rotation enable accurate work in tight spaces
- Flexible payload: Configurable bucket capacity allows operators to carry tools and equipment safely
- Enhanced efficiency: Optional APU and tool circuits improve operational performance
- Reliable performance: Proven design with safety valves and robust engineering for demanding utility applications
Whether used by utility companies, contractors, or electrical service providers, the Palfinger ETC 37 IH delivers a safe, versatile, and efficient solution for elevated work in energized and high-access environments.
