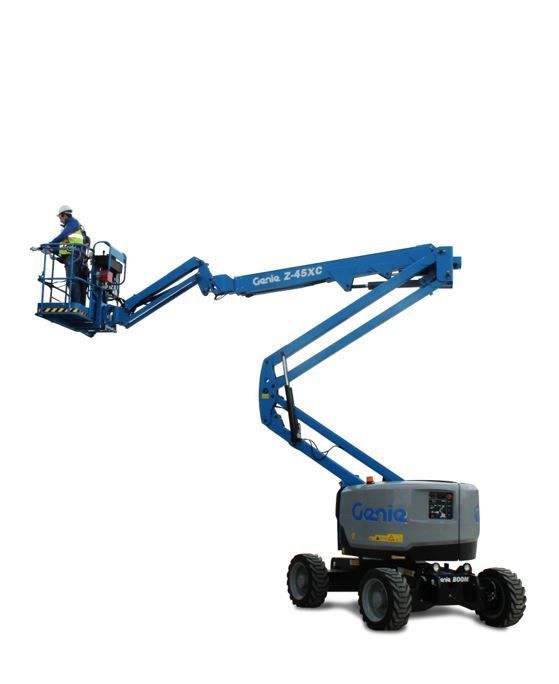

Genie Z-45 XC

Genie Z-45 XC Key Facts

  • Max. Working Height Max. Working Height: 15.86m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 7.55m
  • Travel Width Travel Width: 2.29m
  • Lift Capacity Lift Capacity: 454kg
  • Weight Weight: 6,870kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie Z-45 XC Key Facts

  • Industry-leading lift capacity of 454kg (300kg unrestricted)
  • Extendable axles for additional stability on rough terrain
  • Platform rotation and self-levelling as standard
  • 4WD for rough terrain performance
  • 1.83 m (6 ft) dual entry platform featuring a side-entry swing gate, and a front sliding mid-rail
  • Well-suited for a wide variety of applications on unfinished construction sites with 2 persons on board and up to 100 kg of tools weight.

The Genie Z-45 XC is a redesign of the extremely popular Z-45/25J RT diesel articulated boom, only with the extra capacity platform offering up to 454kg lift capacity. The new design offers up to 15.86m working height with an outreach of 7.55m offering up-and-over clearence of 7.3m.

When operated with the primary boom in retracted position, this machine’s maximum working height and horizontal outreach are reduced by no more than 1.7 m (5ft 6 in).


More Information
Max. Working Height 15.86m
Max. Horizontal Outreach 7.55m
Lift Capacity 454kg
Power Source Diesel
Weight 6,870kg
Travel Width 2.29m
Lifting Mechanism Articulated Boom
Chassis Type RT Diesel Self propelled
