Genie SX-135 XC 4WD

Genie SX-135 XC 4WD Key Facts

  • Max. Working Height Max. Working Height: 43.15m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 27.43m
  • Travel Width Travel Width: 2.49m
  • Lift Capacity Lift Capacity: 454kg
  • Weight Weight: 21,546kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie SX-135 XC 4WD Key Facts

  • Industry leading lift capacity of 454kg
  • Features new telescoping jib 5.48m-9.14m (18ft – 30ft)
  • Jib Extend provides unique up-and-over capabilities
  • Works up to 6m below ground level
  • Stage IIIA and V Engine
  • Lift Tool™ Work Tray

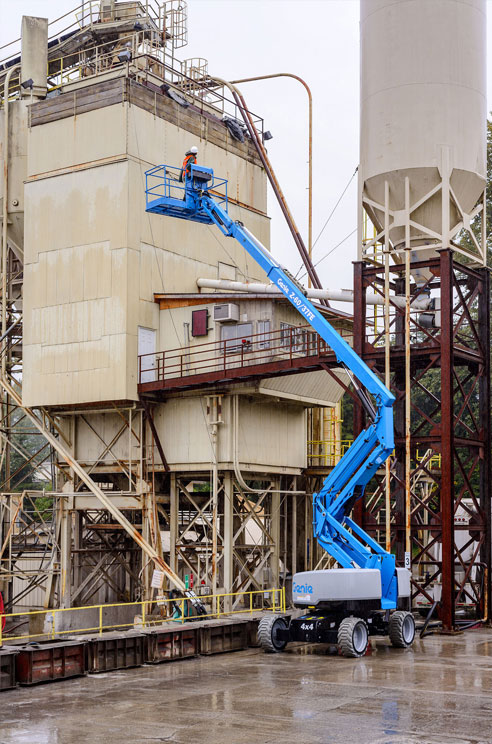

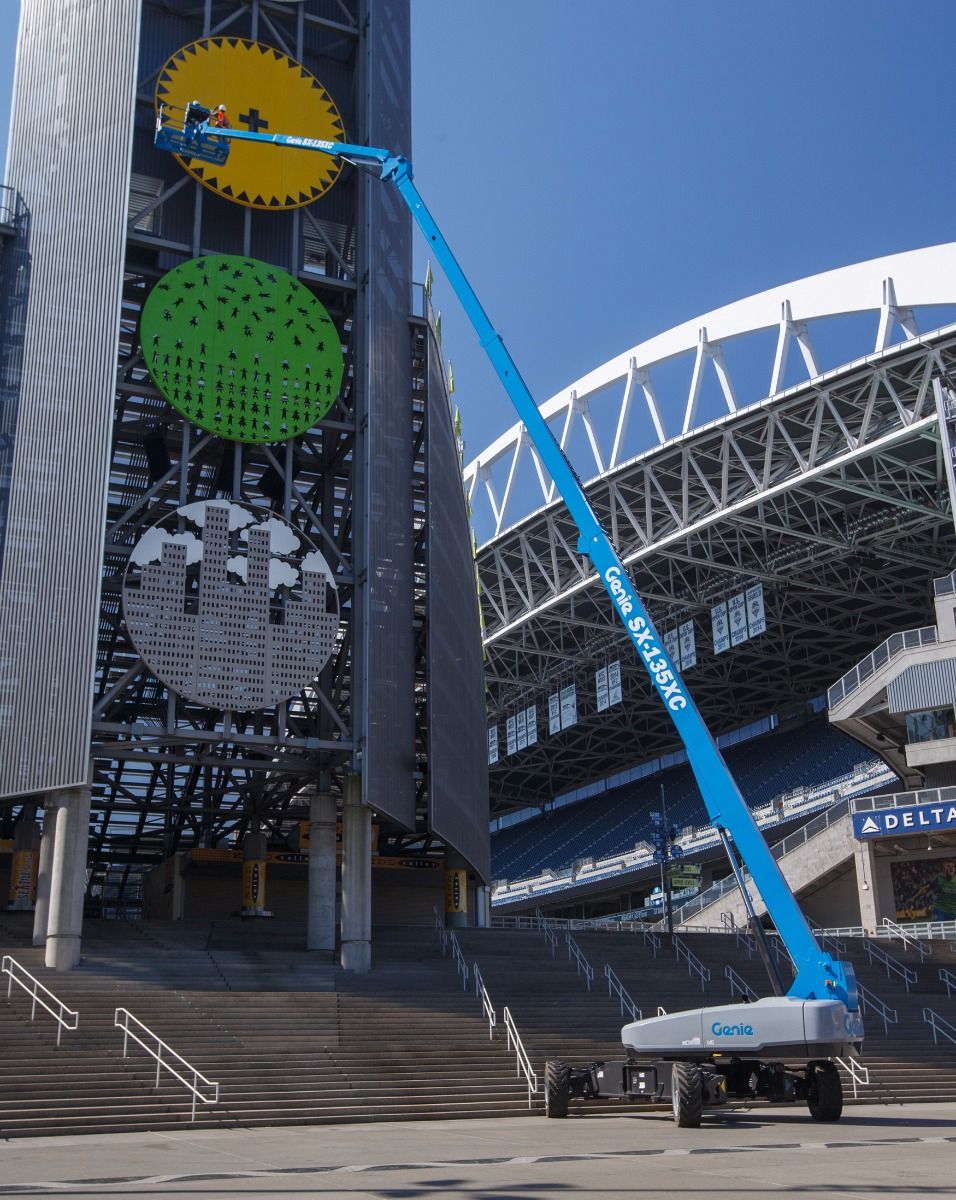

The Genie SX-135 XC 4WD boom lift offers industry leading outreach and lift capacity of up to 454kg. It provides two safe working loads – up to 454kg with a restricted envelope or up to 300kg with unrestricted operation, which allows up to three people with tools to work on the platform.

It features Genie’s new 5.48m -9.14m (18ft – 30ft) telescoping jib which delivers 125° of articulation, and Jib-Extend, which provides unique up-and-over capabilities. The Genie SX-135XC can be driven when working at full height, and the new mini XChassis axle feature means axles can be extended for additional stability.


More Information
Max. Working Height 43.15m
Max. Horizontal Outreach 27.43m
Lift Capacity 454kg
Power Source Diesel
Weight 21,546kg
Travel Width 2.49m
Lifting Mechanism Telescopic Boom
Chassis Type RT Diesel Self propelled
