Hinowa Lightlift 33.17 Performance IIIs

The Hinowa 33.17 is the largest tracked spider boom in the Lightlift Performance IIIs range, offering a working height of up to 32.5m and maximum outreach of 16.5m. With a larger basket area...

  • Max. Working Height Max. Working Height: 32.5m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 16.5m
  • Travel Width Travel Width: 1.70m
  • Lift Capacity Lift Capacity: 230kg
  • Weight Weight: 7,480kg
  • Power Source Power Source: Battery Mains Electric Diesel

NEED SOME HELP?

Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk

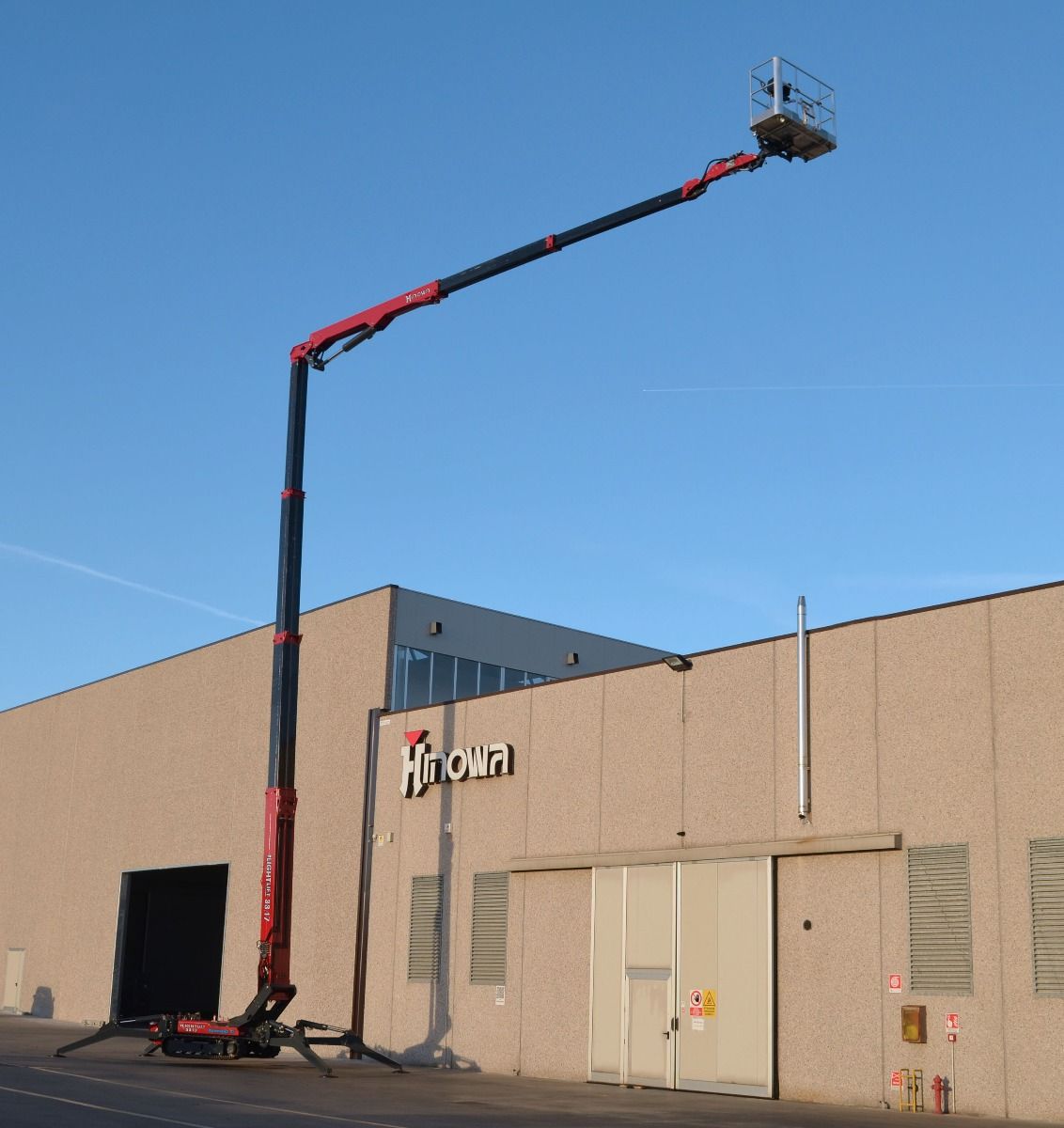

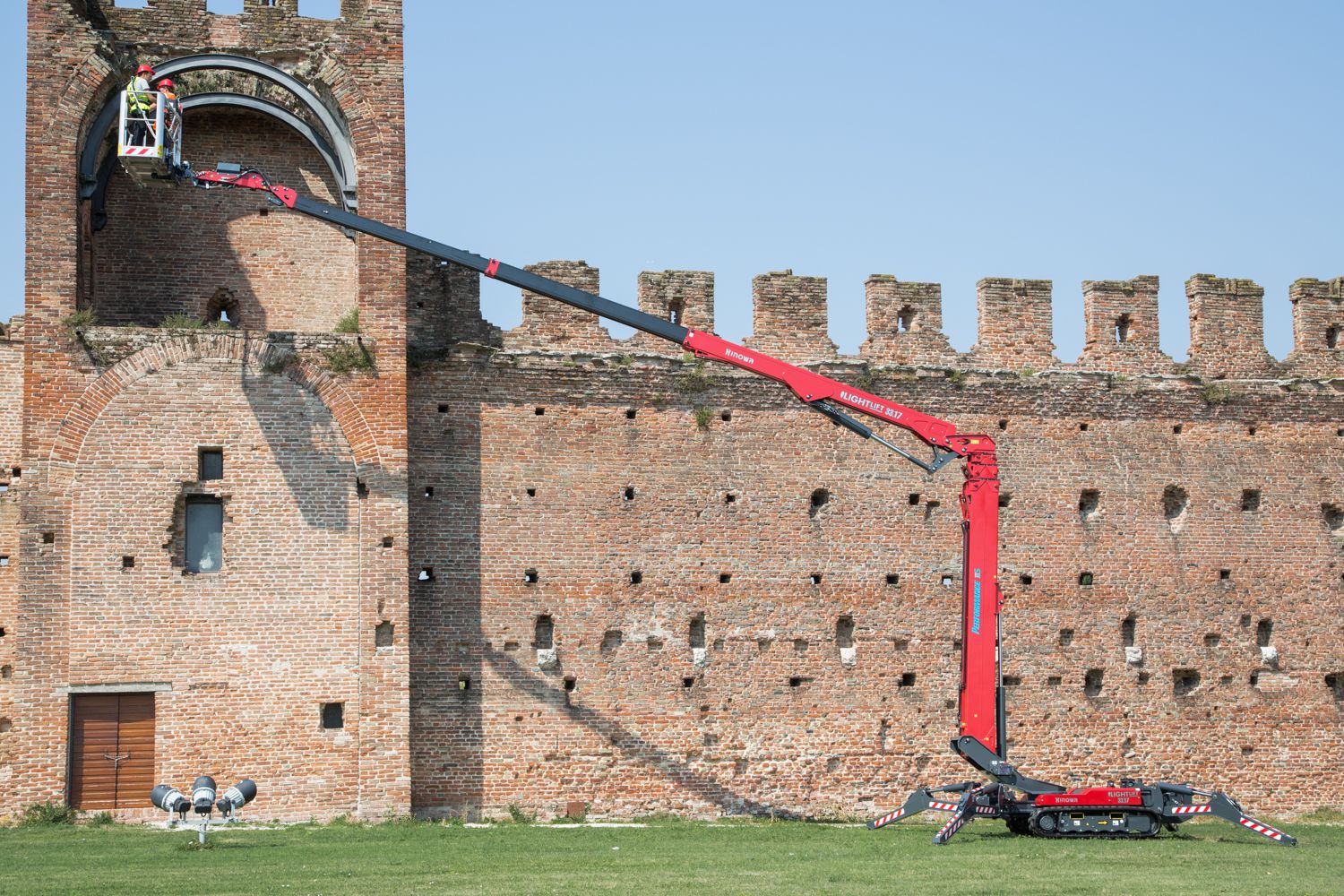

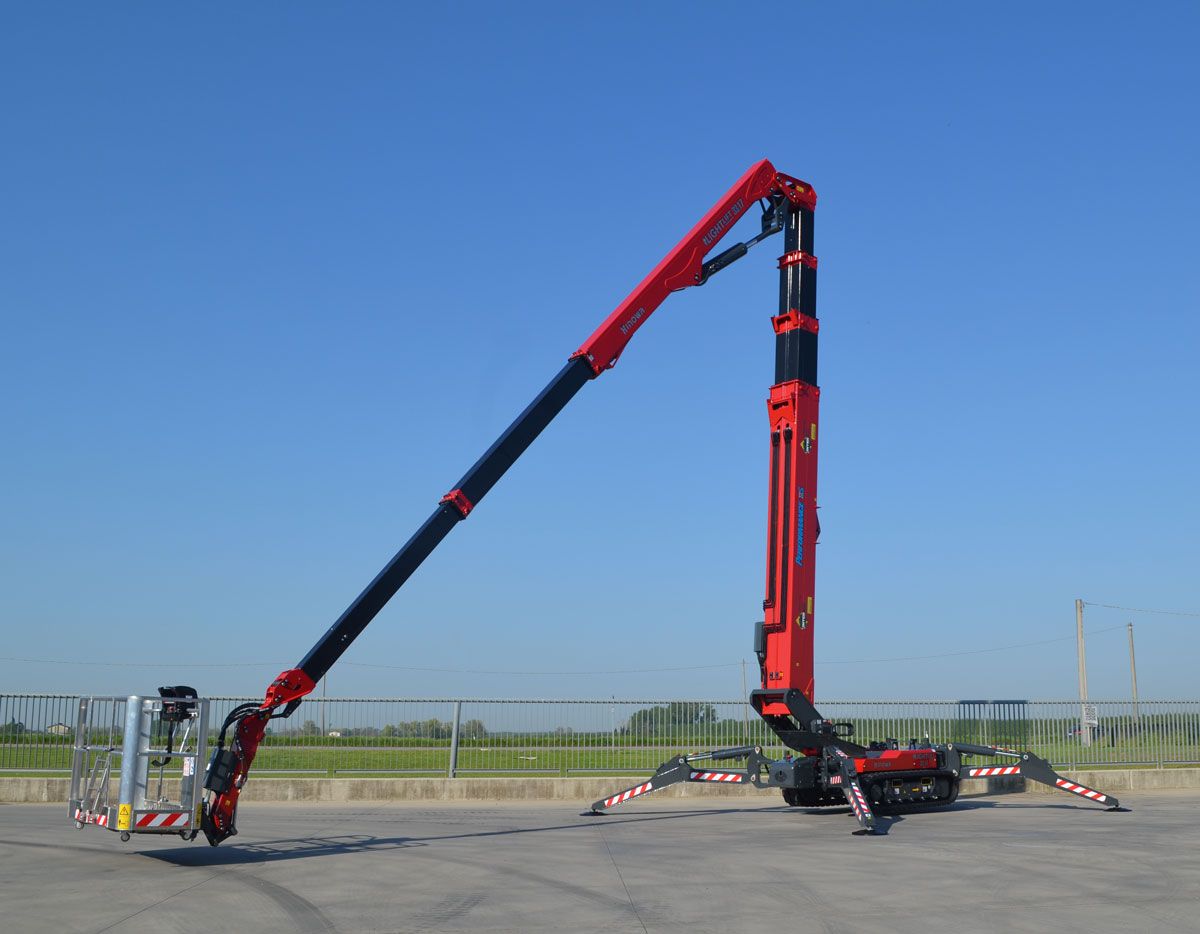

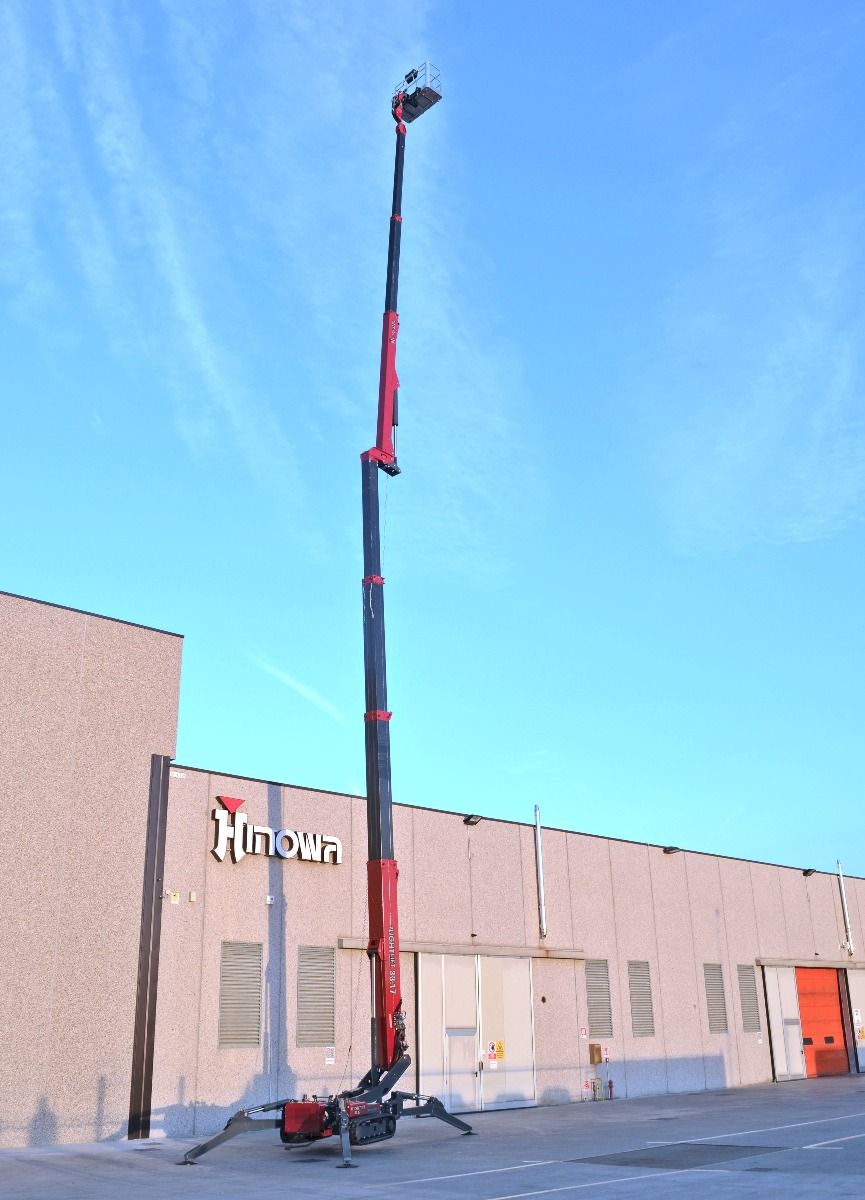

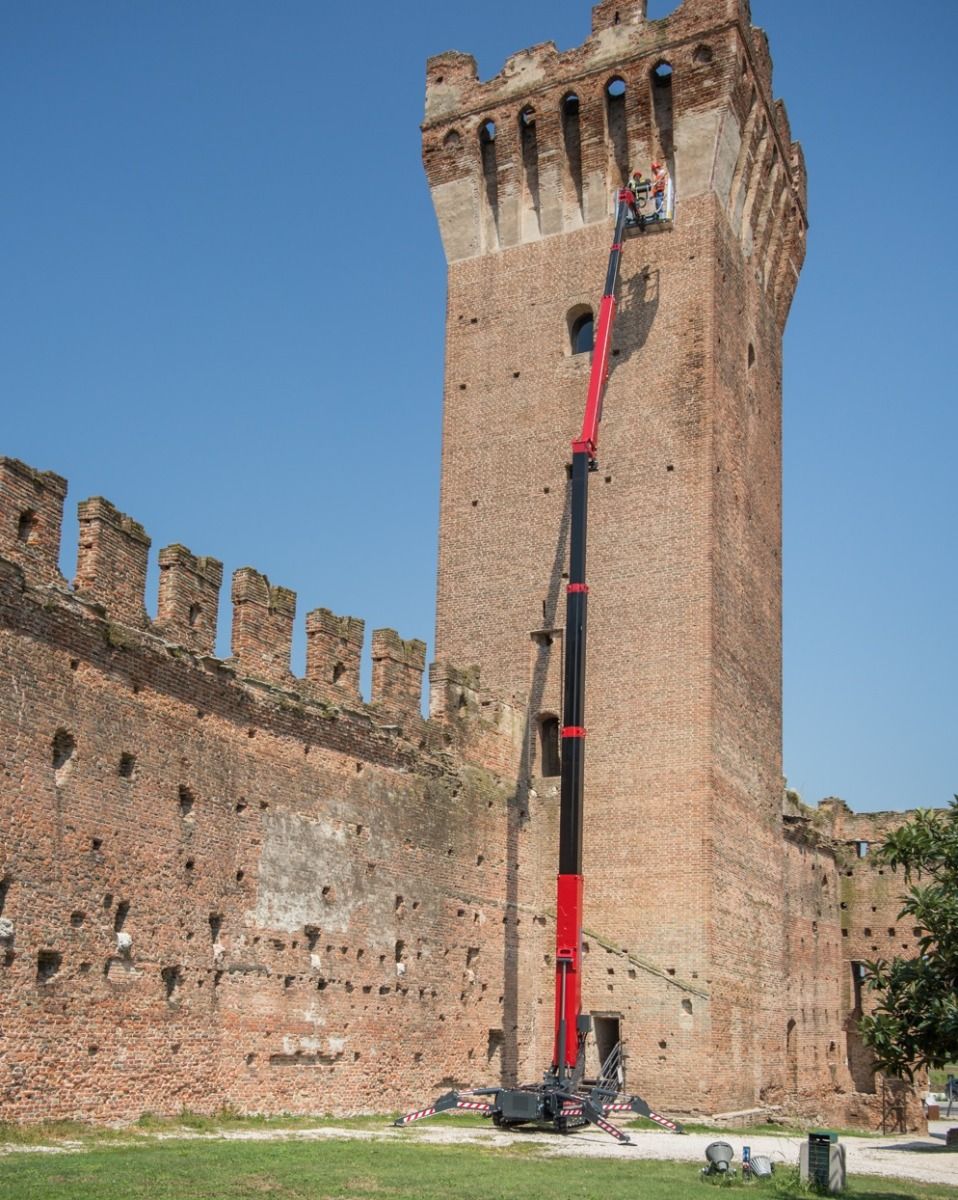

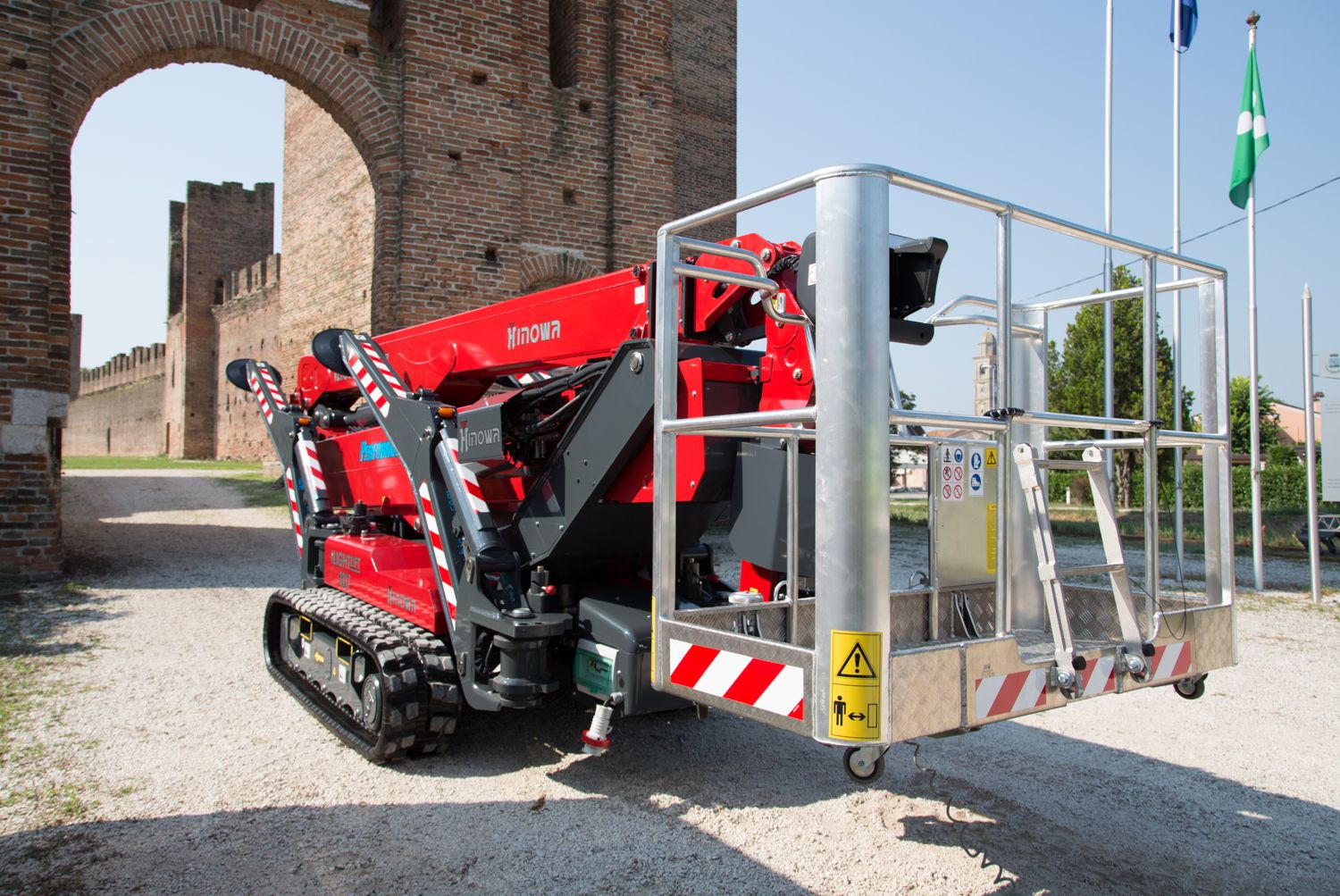

The Hinowa 33.17 is the largest tracked spider boom in the Lightlift Performance IIIs range, offering a working height of up to 32.5m and maximum outreach of 16.5m. With a larger basket area measuring 1.6m x 1.4m and new jib design allowing +/- 90° rotation, the 33.17 tracked boom offers a comfortable working area to help increase working efficiency.

The Lightlift 33.17 is also the first of Hinowa's tracked booms to offer negative reach, allowing for the inspection of dockyards and bridges. With power options including Diesel, Lithium-ion battery and Bi-Energy along with a stowed width of 1.7m, the Lightlift 33.17 can pass through doorways allowing for indoor applications as well as outdoor.

The Hinowa Lightlift 33.17 is also the first of its kind to feature the new 'Go Home' button, allowing for the machine to be returned to its stowed compact position with just the touch of a button.

Outrigger pads are recommended with this equipment. Find the right sized pads here >>

Specifications

More Information
Max. Working Height 32.50m
Max. Horizontal Outreach 16.50m
Lift Capacity 230kg
Power Source Battery, Mains Electric, Diesel
Weight 7,480kg
Travel Width 1.70m
Lifting Mechanism Articulated Boom
Chassis Type Electric Self propelled
