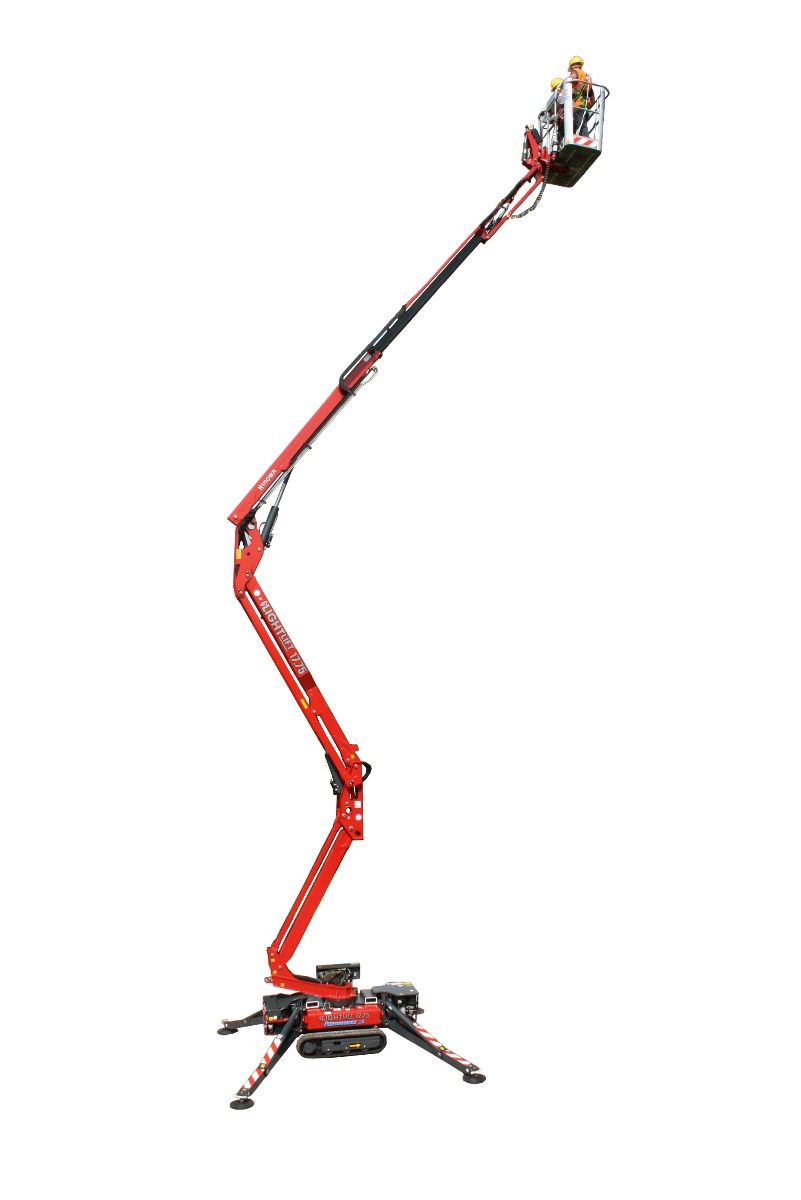

Hinowa Lightlift 17.75 Performance IIIs

The Hinowa Lightlift 17.75 Performance IIIs has a platform load capacity of 230kg available without restriction throughout its working envelope. This high-performance tracked boom offers a working...

  • Max. Working Height Max. Working Height: 17.06m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 7.5m
  • Travel Width Travel Width: 0.79m
  • Lift Capacity Lift Capacity: 230kg
  • Weight Weight: 2,230kg
  • Power Source Power Source: Diesel Petrol Lithium Battery

NEED SOME HELP?

Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk

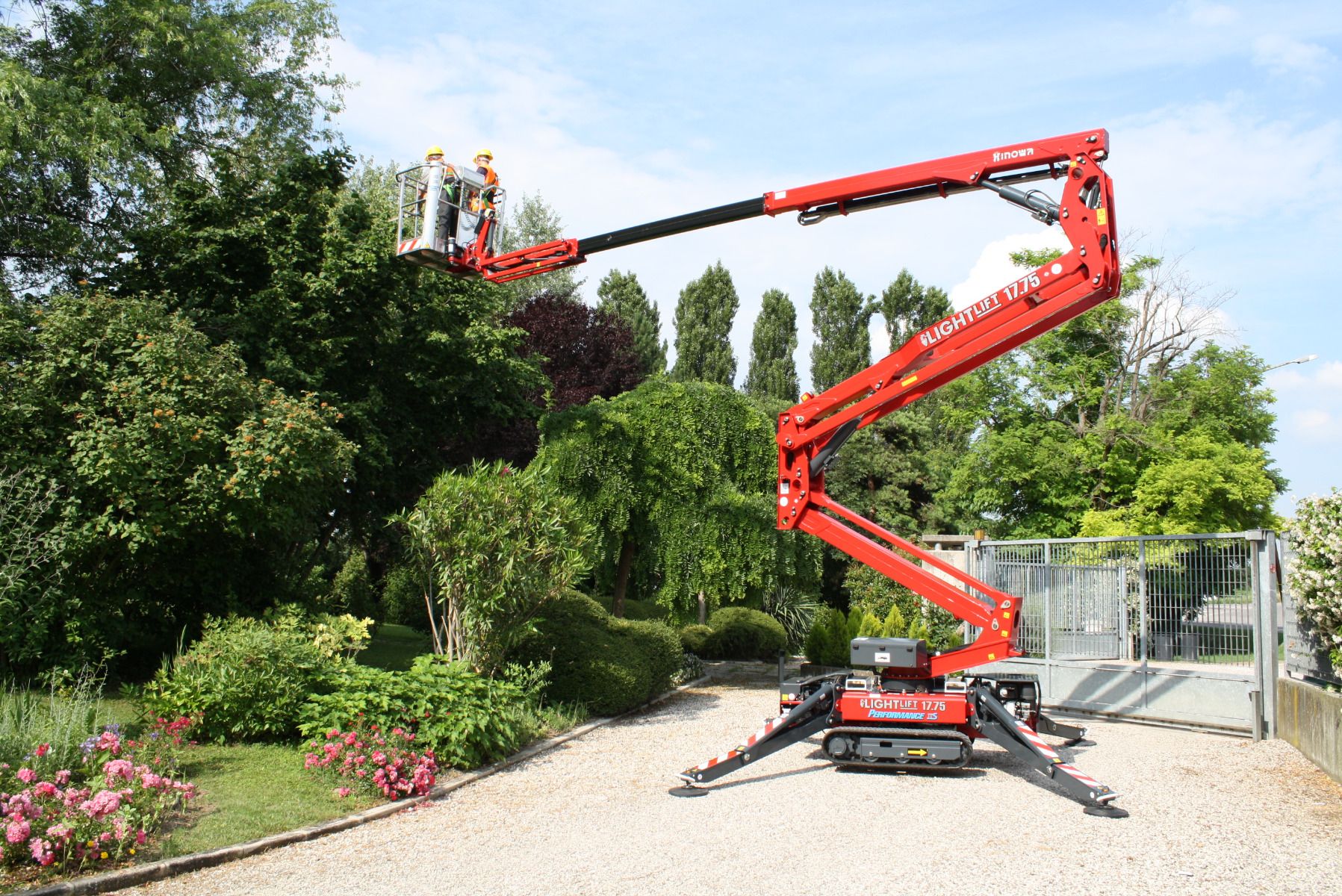

The Hinowa Lightlift 17.75 Performance IIIs has a platform load capacity of 230kg available without restriction throughout its working envelope. This high-performance tracked boom offers a working height of up to 17m, a maximum outreach of 7.5m, and features a dual pantograph lifting mechanism which allows it be used flush against a wall.

Other features include fully automatic stabiliser deployment, for quick and safe set-up various ground conditions and rough terrain. The Hinowa 17.75 is available in a petrol or diesel engine combined with a mains electric power, or with a lithium battery option, for quiet, pollution-free operation.

Outrigger pads are recommended with this equipment. Find the right sized pads here >>

Specifications

More Information
Max. Working Height 17.06m
Max. Horizontal Outreach 7.50m
Lift Capacity 230kg
Power Source Diesel, Petrol, Lithium Battery
Weight 2,230kg
Travel Width 0.79m
Lifting Mechanism Articulated Boom
