Hinowa Goldlift 14.70

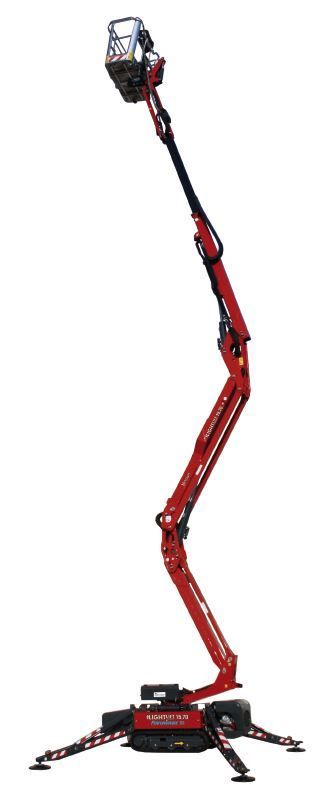

The Hinowa Lightlift 14.70 Performance IIIS is a light weight, highly compact spider cherry picker for working at height in the most challenging outdoor and indoor spaces.

Read More >

  • Max. Working Height Max. Working Height: 14m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 7m
  • Travel Width Travel Width: 0.78m
  • Lift Capacity Lift Capacity: 200kg
  • Weight Weight: 1,700kg
  • Power Source Power Source: Diesel Petrol Lithium Battery

NEED SOME HELP?

Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email sales@accessplatforms.co.uk

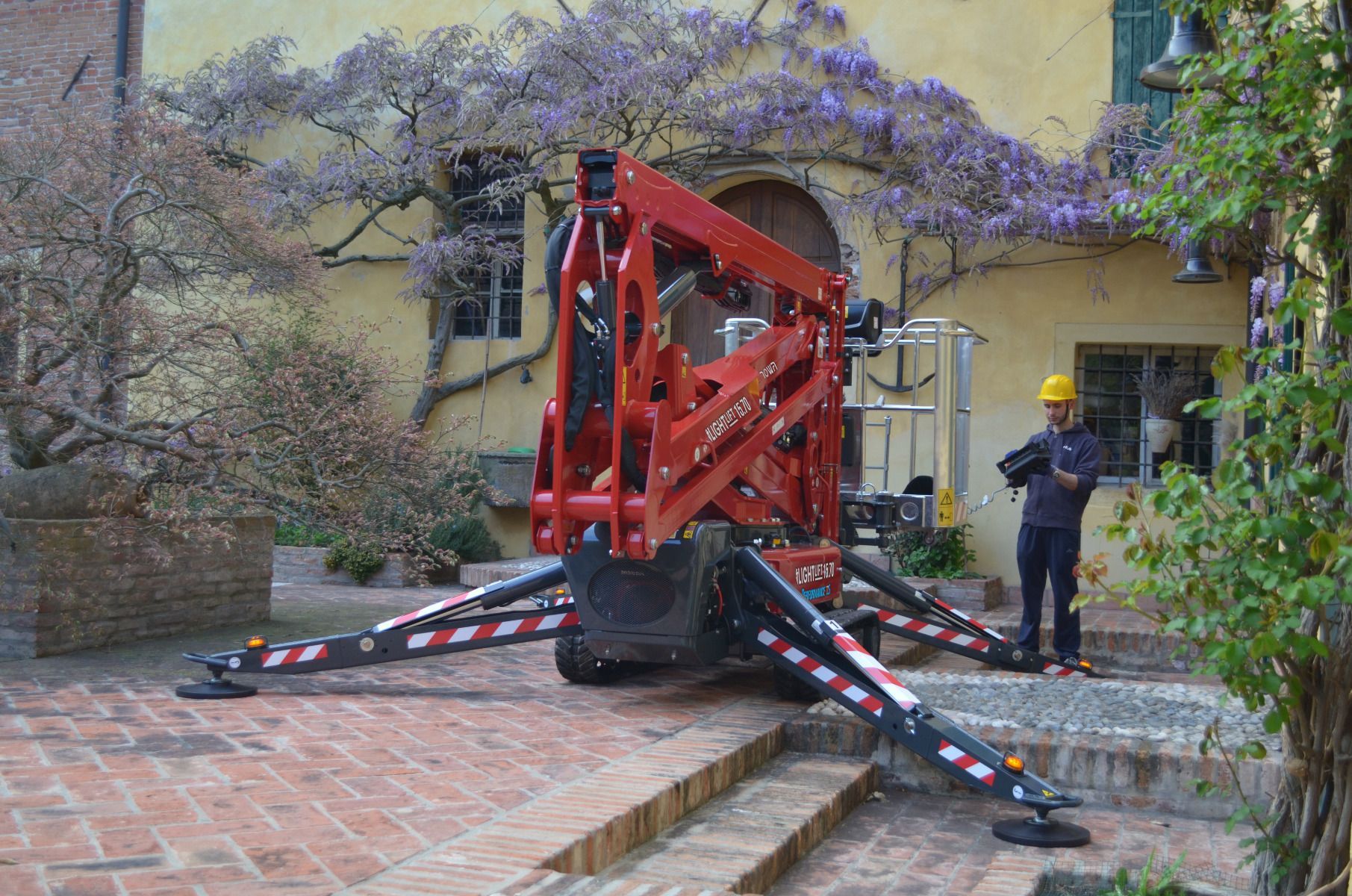

The Hinowa Lightlift 14.70 has a maximum working height of 13.9m and outreach of up to 6.76m yet is just 786mm wide in tracking mode so can be moved through single doors or garden gates.

The tracks can also be widened to 1142mm for extra stability over rough terrain. The tracked spider lift has an unrestricted basket capacity of 120kg for single person operation with tools and 200kg capacity to a working height of 12.25m and an outreach of 5.92m. An electronic engine management system reduces fuel consumption and noise. One touch stabilisation and stowing supports productivity and safety.

The platform can be supplied with bi-energy diesel or petrol engines with 110v mains electric power, or with a lithium battery power pack.

Outrigger pads are recommended with this equipment. Talk to our Parts team to identify the right sized pads.

Specifications

More Information
Max. Working Height 14m
Max. Horizontal Outreach 7m
Lift Capacity 200kg
Power Source Diesel, Petrol, Lithium Battery
Weight 1,700kg
Travel Width 0.78m
Lifting Mechanism Articulated Boom
Chassis Type Electric Self propelled
