Genie Z-51/30J RT

Genie Z-51/30J RT 4WD Key Facts

  • Max. Working Height Max. Working Height: 17.62m
  • Max. Horizontal Outreach Max. Horizontal Outreach: 9.25m
  • Travel Width Travel Width: 2.29m
  • Lift Capacity Lift Capacity: 227kg
  • Weight Weight: 7,212kg
  • Power Source Power Source: Diesel


Fill in your details below and a member of our team will get back to you shortly. Need some help? Call us on 01480 891251 or email

Genie Z-51/30J RT 4WD Key Facts

  • 17.6m working height articulating rough terrain boom
  • Auto-levelling platform with 160° hydraulic basket rotation 1.5m jib for precise positioning of the platform
  • Fully proportional controls for smooth operation
  • Active oscillating axle for enhanced rough terrain performance

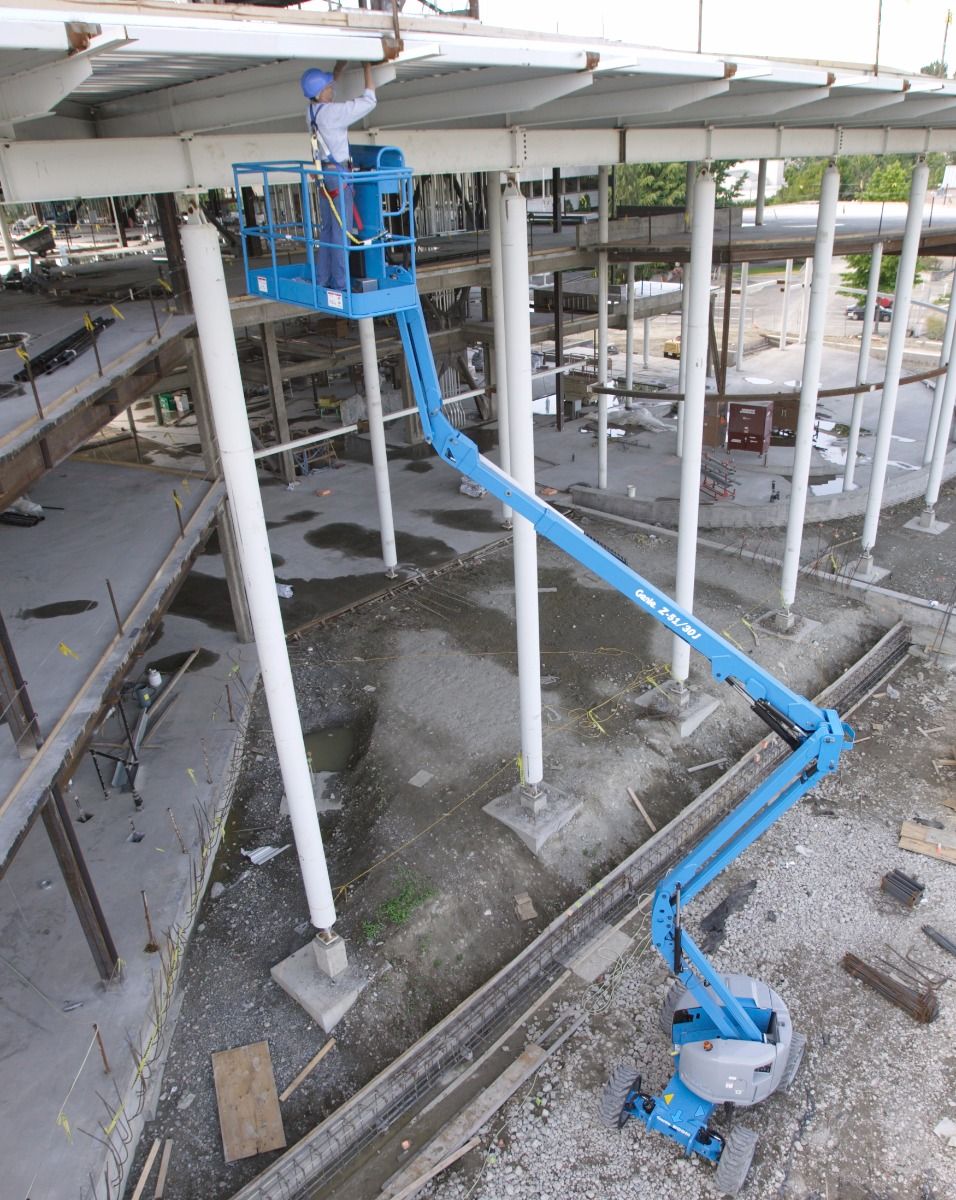

The Genie Z-51/30J RT 4WD articulating rough terrain boom offers a working height of up to 17.6m and excellent “up and over” clearance for working over fences and other barriers. Standard features include a 1.5m jib and self-levelling platform. Excellent rough terrain drive is assured via a 2-speed motor and positive traction control.


More Information
Max. Working Height 17.62m
Max. Horizontal Outreach 9.25m
Lift Capacity 227kg
Power Source Diesel
Weight 7,212kg
Travel Width 2.29m
Lifting Mechanism Articulated Boom
Chassis Type RT Diesel Self propelled
